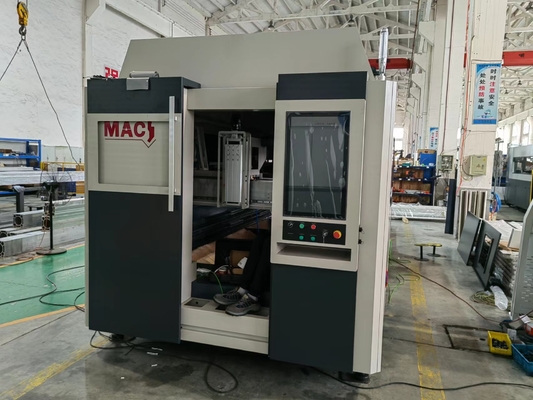

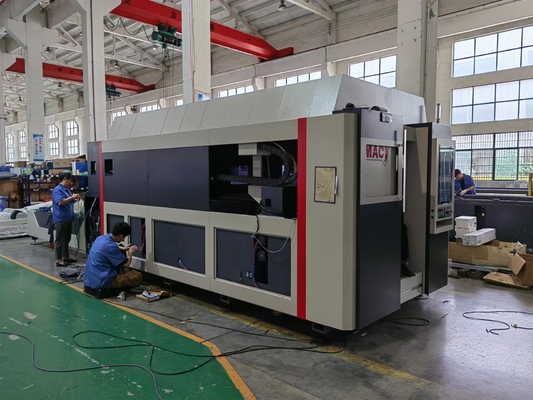

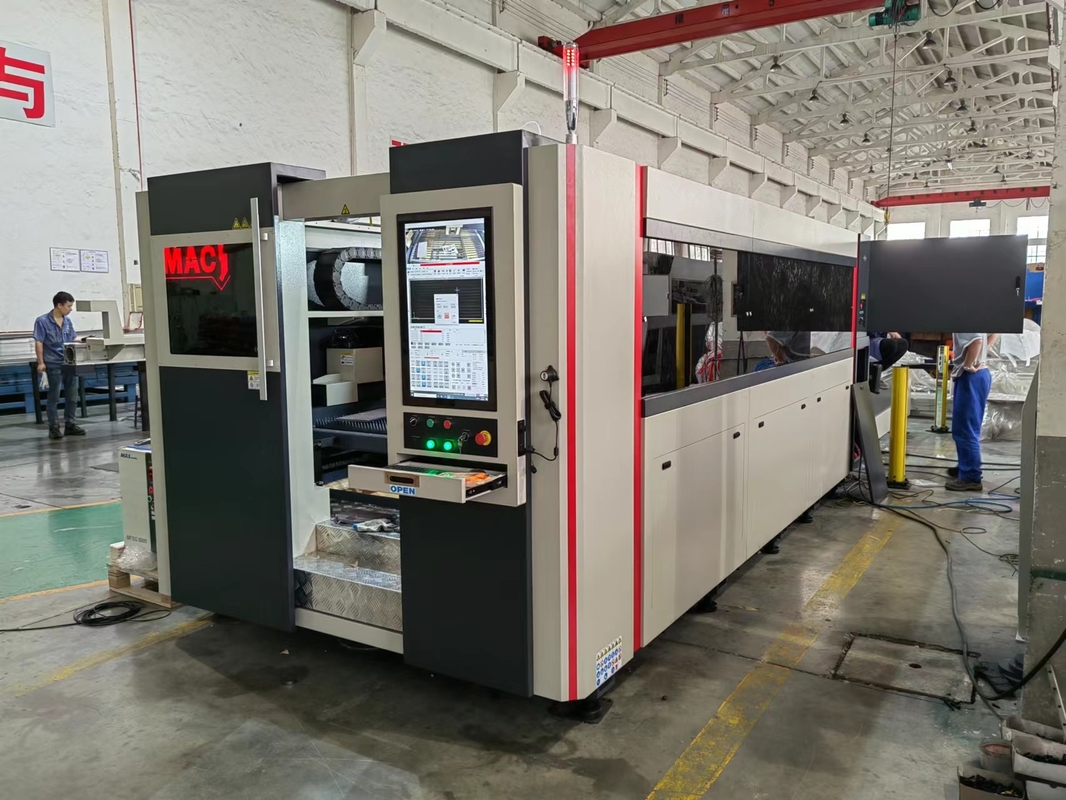

MAC France OEM CNC Fiber Laser Cutting Machine 3000w

Name: MAC France OEM CNC Fiber Laser Cutting Machine 3000w
Brand: Jinqiu
SKU: GM3015-3000
Price: 1.00 USD
Availability: InStock
Rating: 5 (193 reviews)

Large Image : MAC France OEM CNC Fiber Laser Cutting Machine 3000w

Product Details:

Place of Origin:	China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name:	Jinqiu
Certification:	CE and CQC
Model Number:	GM3015-3000

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD or RMB
Packaging Details:	metal steel frame
Delivery Time:	55-60 days
Payment Terms:	L/C, T/T
Supply Ability:	150 pcs per month

Contact Now

Detailed Product Description

Cutting Size (mm):

3000×1500

Effective Travel:

X Axle(mm) 3050;Y Axle (mm) 1520;Z Axle (mm) 100

PositionaI Accuracy:

X Axle (mm/m) ±0.03;Y Axle (mm/m) ±0.03;Z Axle (mm/m) ±0.01

Name:

MAC France OEM CNC Fiber Laser Cutting Machine

High Light:

3000w cnc fiber laser cutting machine

OEM cnc fiber laser cutting machine

cnc fiber laser cutting machine 3000w

Product introduction

We focus on laser cutting machines for many years, has accumulated rich experience in the field of laser cutting, relying on designing and manufacturing advantages of our group, have the ability to manufacture large laser cutting equipments.

Main features:

1,The photoelectric conversion efficiency can reach 30%, twice-three times that of CO2;

2,Less power consumption, CO2 is 20% ~ 30%;

3,No laser work gas, can save a lot of laser maintenance cost;

4,Optical fiber transmission, without reflection lens, do not need to adjust the light path.

5,Used for cutting non-ferrous metals, aluminum alloy, copper and other materials

Product features:

Gantry double drive structure, smooth and reliable movement;
Independent research and development design, the manufacture of machine tool bed, special processing technology, high precision of machine tool, stable and reliable, long life;
Precision gear rack drive, with high precision gear reducer, high response and high precision servo motor;
The international first-class quality of fiber laser, industrial application for many years, long service life, maintenance free, stable and reliable;
High precision laser cutting head, imported optical lenses, is focused on the fine, the adjustment is convenient, cutting perfect;
A double closed-loop control capacitiver torch height controller, low requirement to the steel plate, cutting quality is stable and reliable;
CNC system is simple and easy operation, low requirements for the operator;
Cutting graphic input multiple formats, powerful draw and edit graphics function;

10,Special cutting software, cutting technology experts, data call functions;

11,Automatic refueling system

12,Cutting gas pressure proportional valve to adjust automatically, not need manual adjustment;

Basic configuration

No.	Description	Brand

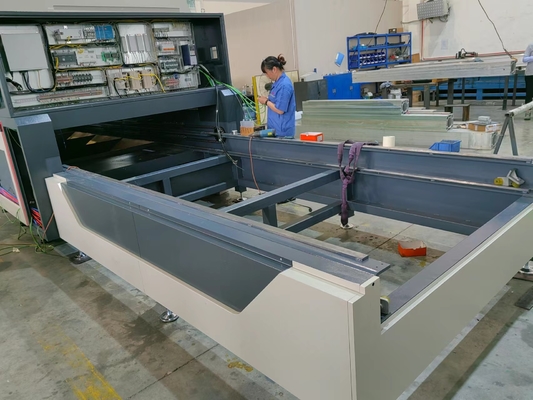

1	Machine main body	Factory,with top seal
2	CNC operationg carbinet	Factory
3	Fiber Laser	MAX-3000W
4	laser chiller	HanLi
5	Laser cutting head	Raytools ,auto focus
6	Capacitive THC	Shanghai Baichu
7	CNC system	Cypcut FSCUT2000
8	Servo motor	China Inovance
9	Gear rack	Japan SMAGIC
10	Linear Guide	Japan SMAGIC
11	Precision reducer	Germany Techmech
12	Proportional valve	Japan SMC
13	high-pressure valve	American Parker

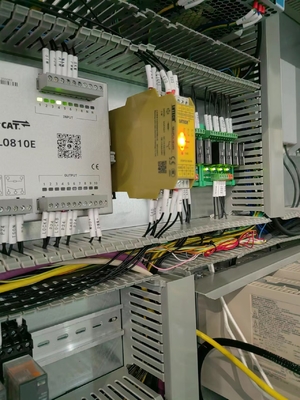

14	Electronic pieces	France Schneider
15	Solenoid valve	Japan SMC
16	Air cylinder	Japan SMC
17	Cutting software	Cypcut
18	Voltage stabilizer	Shanghai Huadong
19	Interior camera and monitor	Factory
20	Auto lubrication system	Factory
21	Safety delay	Germany Pilz
22	Window glass	CE standard OD7
23	Dust filter exhaust equipment(optional)	China TOPSIN
24	Air compressor(optional)	China brand

Technical indicators

1,Machine tool technology parameters

Items		Technical parameters
Items		Technical parameters
Cutting size (mm)		3000×1500
Effective travel	X axle(mm)	3050
	Y axle (mm)	1520
	Z axle (mm)	100
PositionaI accuracy	X axle (mm/m)	±0.03
	Y axle (mm/m)	±0.03
	Z axle (mm/m)	±0.01
repeated positioning accuracy	X axle (mm)	±0.02
	Y axle (mm)	±0.02
	Z axle (mm)	±0.005
Rapid positioning speed	X axle (m/min)	80
	Y axle (m/min)	80
	Z axle (m/min)	30
IP Grade		IP54
boundary dimension L×W×H(mm)		4530×2520×1450(for reference)

Environmental requirement

	Working environment temperature	-5℃-50℃
	Relative humidity	70% non-condensing
	Surrounding environment	ventilate,No impact on within 5 meters
	Power voltage	220V±5%,380V±5%,
	Supply frequency	50Hz
	Input Power	30Kw
	Grounding type	Centralized directly

Equipment cutting parameter list(only for reference)

Material	Thickness(mm)	Gas	Speed (m/min)	Laser power(W)	Nozzle type
Mild steel (Q235B)	1	N2/Air	47~50	3000	Single layer:1.0
	2	N2/Air	21~23	3000	Single layer:1.5
	3	N2/Air	6~12	3000	Single layer:3.0
	3	O2	3.9~4.1	3000	Double layer:1.2
	4	O2	3.4~3.6	3000	Double layer:1.2
	6	O2	2.7~2.8	3000	Double layer:1.2
	8	O2	2.1~2.3	3000	Double layer:1.2
	10	O2	1.4~1.6	3000	Double layer:1.4
	12	O2	1~1.1	2200~2400	Double layer:3.0
	14	O2	0.9~0.95	2200~2400	Double layer:4.0
	16	O2	0.8~0.85	2200~2400	Double layer:4.0
	18	O2	0.7~0.72	2200~2400	Double layer:4.0
	20	O2	0.6~0.65	2200~2400	Double layer:4.0
	22	O2	0.55	2200~2400	Double layer:4.0
	25	O2	0.5	2200~2500	Double layer:5.0
Stainless steel(SUS304)	1	N2/Air	50~53	3000	Single layer:1.5
	2	N2/Air	23~25	3000	Single layer:2.0
	3	N2/Air	10~12	3000	Single layer:3.0
	4	N2/Air	6~8	3000	Single layer:3.0
	6	N2/Air	2.9~3.1	3000	Single layer:3.0
	8	N2/Air	1.2~1.3	3000	Single layer:3.0
	10	N2/Air	0.75~0.8	3000	Single layer:4.0
	12	N2/Air	0.5	3000	Single layer:4.0
Al	1	N2/Air	40~43	3000	Single layer:1.0-1.5
	2	N2/Air	16~18	3000	Single layer:1.5-2.0
	3	N2/Air	8~10	3000	Single layer:2.0-3.0
	4	N2/Air	5~6	3000	Single layer:3.0
	6	N2/Air	1.5~2	3000	Single layer:3.5-4.0
	8	N2/Air	0.6~0.7	3000	Single layer:4.0
Copper brass	1	N2/Air	37~40	3000	Single layer:1.0-1.5
	2	N2/Air	14~16	3000	Single layer:1.5-2.0
	3	N2/Air	7~9	3000	Single layer:2.0-3.0
	4	N2/Air	3~4	3000	Single layer:3.0
	6	N2/Air	1.2~1.5	3000	Single layer:3.5-4.0
	8	N2/Air	0.5~0.6	3000	Single layer:4.0
	The thickness of green materials means that they can be processed for long times and in large quantities.
	The yellow thickness material indicates that it can be processed, but as the material temperature rises, the cutting pressure fluctuations, uneven plate composition and other factors fluctuate, the processing process is unstable, it is recommended to use a higher power laser.
	Red thickness of the material means that can be cut off, can not be processed in batch.

Running cost:(only for reference)

No.	Name	Quantity Demand
1	Electricity	10-12KW/h
2	Oxygen	5.5L-6.5L/h
3	Nitrogen	14L-16L/h
4	Protection lens	1-2pcs/month
5	Nozzle	1-2pcs/month

Tool list

1,Tool

No.	Name	Qnt.	Unit
1	Protection lens	10	pc
2	nozzle	10	pc
3	Ceramic ring	2	pc
4	Protective Eyewear	1	set

Buyer’s Preparation

If not available at customer’s side, please inform us in advance.

No	Item	Specs	Qty
1	Machine powersupply cable	10mm2*8	25m
2	Machine grounding cable	10mm2	25m
3	Grounding copper rod	Diameter:35mm	2.5m
4	deionized water	Second grade	100L
5	Switch box	220V,2P;380V, 3P,	1
6	High pressure pipe joint	In-line for air compressor. 10mm	2
7	Gas pipe	10mm	20m
8	Oxygen cylinder	220L	1
9	N2 cylinder	220L	1
10	Carburetor(with pressure adjustor and pipe)	100L	1
11	Input powersupply	>30kw	1
