| High Light: | 2 in 1 plate flattening machine,400mm plate flattening machine,2in1 steel plate flattening machine |
||
|---|---|---|---|

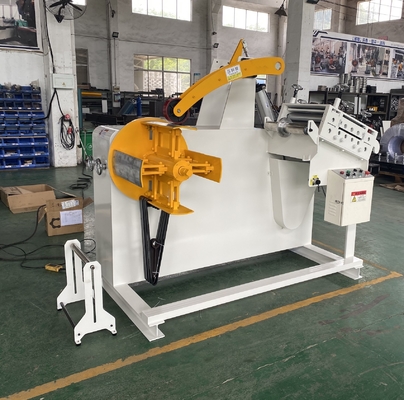

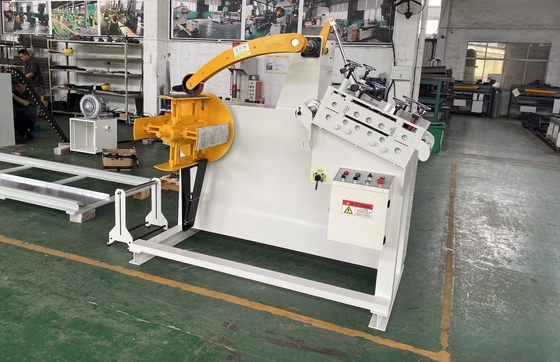

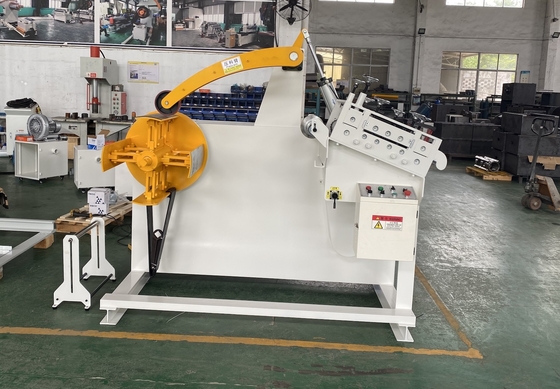

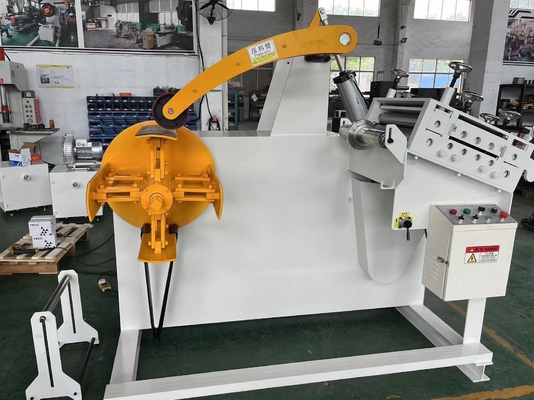

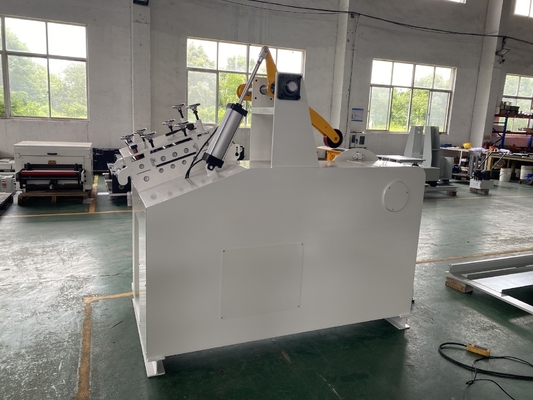

GO-400 2 In 1 coil open And flattening matched with press machine for European-Czech customer
Coil automatic uncoil-leveling and feeding
| 2 in 1 GO-400A with press arm from left to right | |||
| Item | details | Item | details |
| width | 400mm | thickness | 0.5-3.0mm |
| reducer | 1:30 | motor | 2HP |
| feeding rollers | ￠70*2 ￠98*2 | coil indiameter | ￠450-530mm |
| straightening roller | ￠60*7/上3下4 | coil out diameter | ￠1600mm |
| max load weight | 3000kg | power | AC, 380V |
| adjust mode | four points independent | speed | 16m/min |
| speed adjust mode | inventer control | other | press arm |
|
characters:
|
|||
1, material rack and straightening machine as a whole, suitable for the thickness of 0.5 ~ 3.0mm of a variety of metal material, using the tilt straightening, high precision,
Small size, improve the plant space available.
2, equipped with surround type brake device, the elastic can be adjusted, roll more smoothly.
3, the use of vertical independent sensor support mode of induction, induction sensitive, the use of a wider range of applicability.
4, roller material using bearing steel, after heat treatment quenching HRC60 degrees, hard chromium plating again grinding, durability strong.
5, the use of well-known brands of electrical and electronic components, fewer faults, long life.
