Green House Metal / Steel Pipe Punching Machine 1600x1180x2300mm

China Green House Metal / Steel Pipe Punching Machine 1600x1180x2300mm supplier
Green House Metal / Steel Pipe Punching Machine 1600x1180x2300mm supplier Green House Metal / Steel Pipe Punching Machine 1600x1180x2300mm supplier Green House Metal / Steel Pipe Punching Machine 1600x1180x2300mm supplier Green House Metal / Steel Pipe Punching Machine 1600x1180x2300mm supplier Green House Metal / Steel Pipe Punching Machine 1600x1180x2300mm supplier

Large Image :  Green House Metal / Steel Pipe Punching Machine 1600x1180x2300mm

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: 45 ton press/punching

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Capacity: 45 Ton Usage: Special Design For Green House Pipe Connection Metal Piece
Material: 1.2-1.5 Mm Strip Function: To Clamp 32 Or 60mm Pipe For Green House

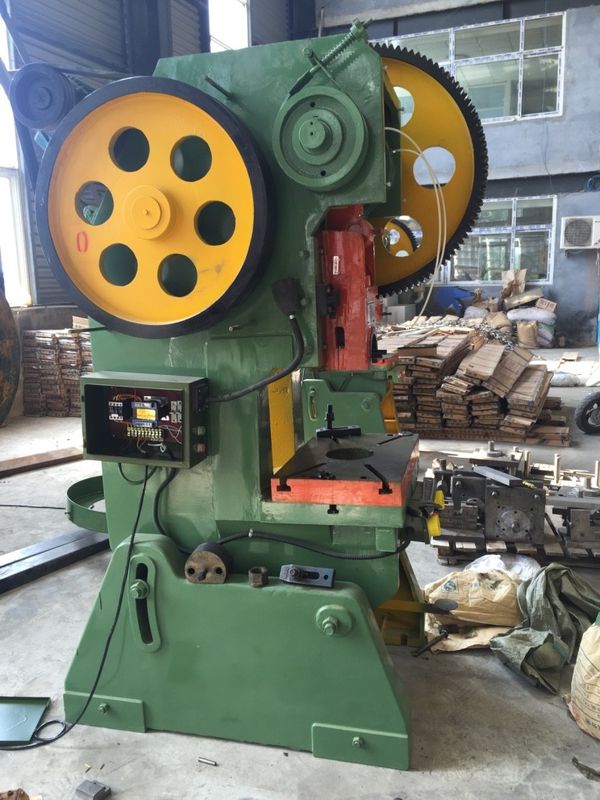

Green house metal/steel piece Mechanical Press Machine/punching machine

Usage:

This punching machine is used to make green house pipe accessories, for example, the pipes connection,green house door and pipe connection.



Punching machine for green house metal accessories technical details:



Nominal force: 400

Slide stroke:6

SPM:120

Max die height:55

Die height adjustment:220

Between slide center and frame:80

Worktable size:480x710

Bolster opening:diameter 220x25x diameter 180

bolser thickness:80

bed opening:diameter 200x150x300

slide area:270x320

shank hole:diameter 50x70

max inclined angle:25 degree

between columns:300

Main motor power:4

outline size:1600x1180x2300

Net weight:3100



Our green house parts punching machine advantage is we are expert for the die disign for green house parts:



Green House Metal / Steel Pipe Punching Machine 1600x1180x2300mm

1) Many factories just know how to make punching machine, but they have not rich experiece for green house. Ourselves have one part---produce green house hardware piece by our sevels, so we have good experience how to make die to make good green house parts

2) compared with others, Our machine and our punching machine die price is very competitive, and the machine workswell. the below is customer comment.



Green House Metal / Steel Pipe Punching Machine 1600x1180x2300mm
