Aluminum Medicine Cap Making Machine Mechanical Press Machine 16 Ton

China Aluminum Medicine Cap Making Machine Mechanical Press Machine 16 Ton supplier
Aluminum Medicine Cap Making Machine Mechanical Press Machine 16 Ton supplier Aluminum Medicine Cap Making Machine Mechanical Press Machine 16 Ton supplier Aluminum Medicine Cap Making Machine Mechanical Press Machine 16 Ton supplier Aluminum Medicine Cap Making Machine Mechanical Press Machine 16 Ton supplier Aluminum Medicine Cap Making Machine Mechanical Press Machine 16 Ton supplier

Large Image :  Aluminum Medicine Cap Making Machine Mechanical Press Machine 16 Ton

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: zigzag die

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Pressure: 16 Ton Usage: Aluminum Cap
Coil Material: 0.2-0.22 Aluminum Coil Speed: 6 Caps Per Stroke, Depends On Cap Die
Cap Production Speed: 500-800 Caps Per Min Accessories: It Has Cap Mould Protection System, When The Cap Is Wrong, The Machine Will Stop To Protect Mould



Zigzag multi die for aluminum medicine bottle cap on punching machine



Aluminum Medicine cap making steps/orders below:

this medicine bottle aluminum cap line includes mechanical press/punching machine, muti-cavity punching die--one time punching forming die, cap aluminum coil holder frame, aluminum coil brush oil, blow finished cap, pull coil material servo control system, pull coil material, waste/useless material coilling, separate aluminum cap and waster/useless ring--the caps come out, the waster rings stay in the collection box, die protection system: during punching, it can protect die, if any cap is wrong, this system will stop the machine to protect dieAluminum Medicine Cap Making Machine Mechanical Press Machine 16 Ton



Advanteges :

1) one punching, we can get 2-20 caps dending on the cap size

2) monitoring system to check the bad cap when punching, the machine will automaticall stop, which can protect the die

3) the cap and rings can be separated automatically





Function:

In China, only us can produce the whole line for wine cap and medicine cap. This line needs a lot of experiece to make let punching and feeding line cooperate very well. We are the most professional factory, in China, 80-90 cap makers use our machine.This cap professional line is specially designed for plastic mold, medicine bottle cap, wine bottle cap, cosmetic cap, it is used with high-speed punching machine



Cap making line details:

1)Cap Punching machine parameters:

Item 16
L S
Nominal pressure kN 450
Nominal pressure stroke mm 3.2
Stroke of slide mm 100 70
Stroke Variable spm 60-90 70-110
Single spm 80 100
Max. die set height mm 270 285
Die height Adjustment mm 60
Depth of throat mm 230
Distance between uprights mm 500
Bottom size of slide L-R mm 410
F-B mm 340
Hole for punch shank Diameter mm Φ50
Depth mm 60
Size of table L-R mm 810
F-B mm 440
Thickness mm 110
Size of opening in table Diameter mm Φ150
Single speed motor power kW 5.5
Overall dimension L-R mm 1080
F-B mm 1410
Height mm 2300
Total weight kg 4000





2) other devices for the cap making line and making steps:

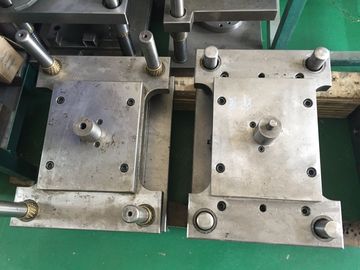

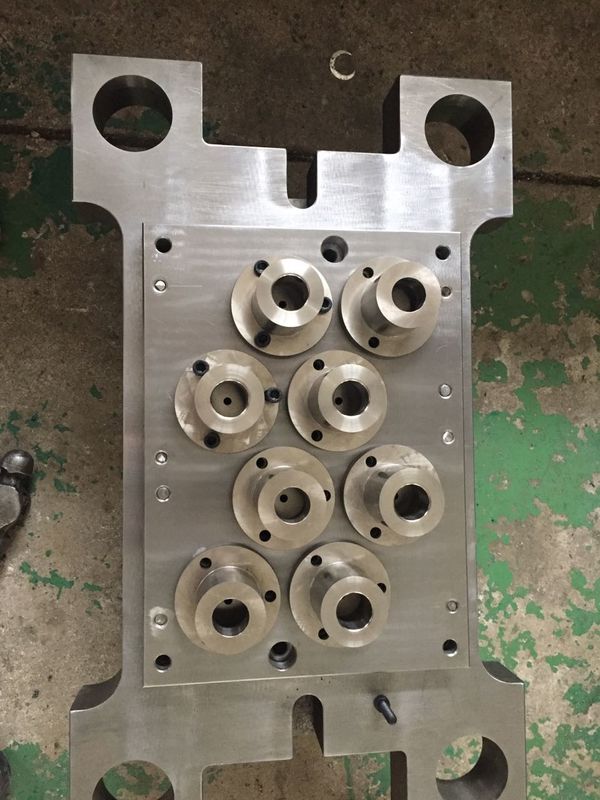

 cap making Step 1:cap punching die with 6 cavity---it means one stroke, we can get 6 caps, max we can produce 16 caps

 cap making Step 2:Cap aluminum coil holder frame

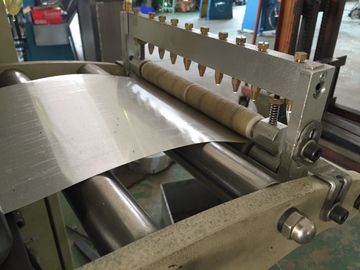

cap making Step 3:Aluminum coil brush oil

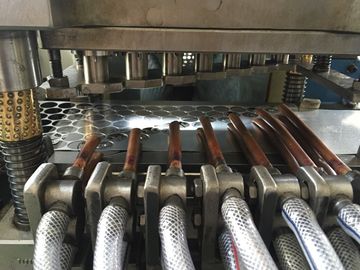

 cap making Step 4:-Blow cap

cap making Step 5:pull coil material servo control system

cap making Step 6:Pull coil material and waste material coiling

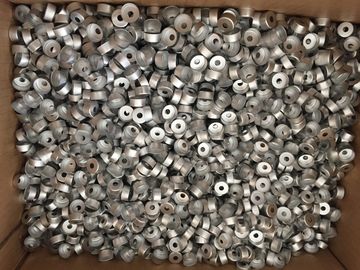

 cap making Step 7:separate aluminum cap and waste ring,The caps come out, the waste rings stay in this cabilet

 cap making Step 8:Die protection system: during punching, it can protect die, if any cap is wrong, this system will stop the machine to protect die



3)More photos



Aluminum Medicine Cap Making Machine Mechanical Press Machine 16 Ton



Aluminum Medicine Cap Making Machine Mechanical Press Machine 16 Ton
