Hot Roll Coil 0.5-25mm Thickness Cut To Length Machine Plywood Case Packaging

China Hot Roll Coil 0.5-25mm Thickness Cut To Length Machine Plywood Case Packaging supplier
Hot Roll Coil 0.5-25mm Thickness Cut To Length Machine Plywood Case Packaging supplier Hot Roll Coil 0.5-25mm Thickness Cut To Length Machine Plywood Case Packaging supplier Hot Roll Coil 0.5-25mm Thickness Cut To Length Machine Plywood Case Packaging supplier Hot Roll Coil 0.5-25mm Thickness Cut To Length Machine Plywood Case Packaging supplier Hot Roll Coil 0.5-25mm Thickness Cut To Length Machine Plywood Case Packaging supplier

Large Image :  Hot Roll Coil 0.5-25mm Thickness Cut To Length Machine Plywood Case Packaging

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: T44QK series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Function: Change The Steel Coil To Steel Sheet

Hot Roll Coil 0.5-25mm Thickness Cut To Length Machine Plywood Case Packaging

Application:



This series line is used for HR coil(0.5mm-25mm) with different specifications, through uncoiling-leveling-cut to length to flattened plate as needed length.

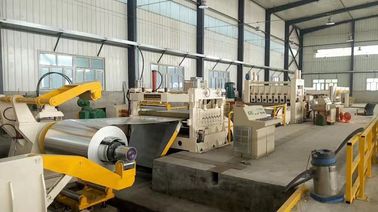

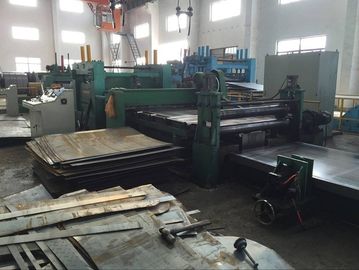

This line is composed of coil car, double support uncoiler, hydraulic pressing and guiding, shovel head, pre-leveler, finish leveler, cut to length machine, stacker, accompany electric control system, hydraulic system, etc. as well as pendulum middle plate, steering device.



Parameters:



ModleName 3×1600 6×1600 8×2000 10x2000 12x2000 16x2000



20x2500



25x2500
Coil Thickness(mm) 0.5-3 1-6 2-8 2-10 3-12 4-16 6-20 8-25
Coil Width(mm) 1600 2000 2000 2200 2200 2200 2500 2500
Length Range(mm) 500-4000 1000-6000 1000-8000 1000-10000 1000-12000 1000-12000 1000-12000 1000-12000
Cutting Length Precision(mm) ±0.5 ±0.5 ±1 ±1 ±1 ±1 ±1 ±1
Leveling roll no. 15 15 13 13 11 11 9 9
Roller diameter mm 100 140 155 160 180 200 230 260



 Packageing & Delivery
Packaging details:Plywood case
Delivery detail: 55-60 days



Why Choose Us?
Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

Questions:
1. Are you a trading company or factory?
  --- We are factory occupying more than 62,000 m2,  with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
  --- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
  --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
  --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

5. Can I go to visit your factory?
  --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
  --- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
