Stainess Steel Pre Painted Cut To Length Machine Uncoiling Leveling Coil Cutting Machine

China Stainess Steel Pre Painted Cut To Length Machine Uncoiling Leveling Coil Cutting Machine supplier
Stainess Steel Pre Painted Cut To Length Machine Uncoiling Leveling Coil Cutting Machine supplier Stainess Steel Pre Painted Cut To Length Machine Uncoiling Leveling Coil Cutting Machine supplier Stainess Steel Pre Painted Cut To Length Machine Uncoiling Leveling Coil Cutting Machine supplier Stainess Steel Pre Painted Cut To Length Machine Uncoiling Leveling Coil Cutting Machine supplier

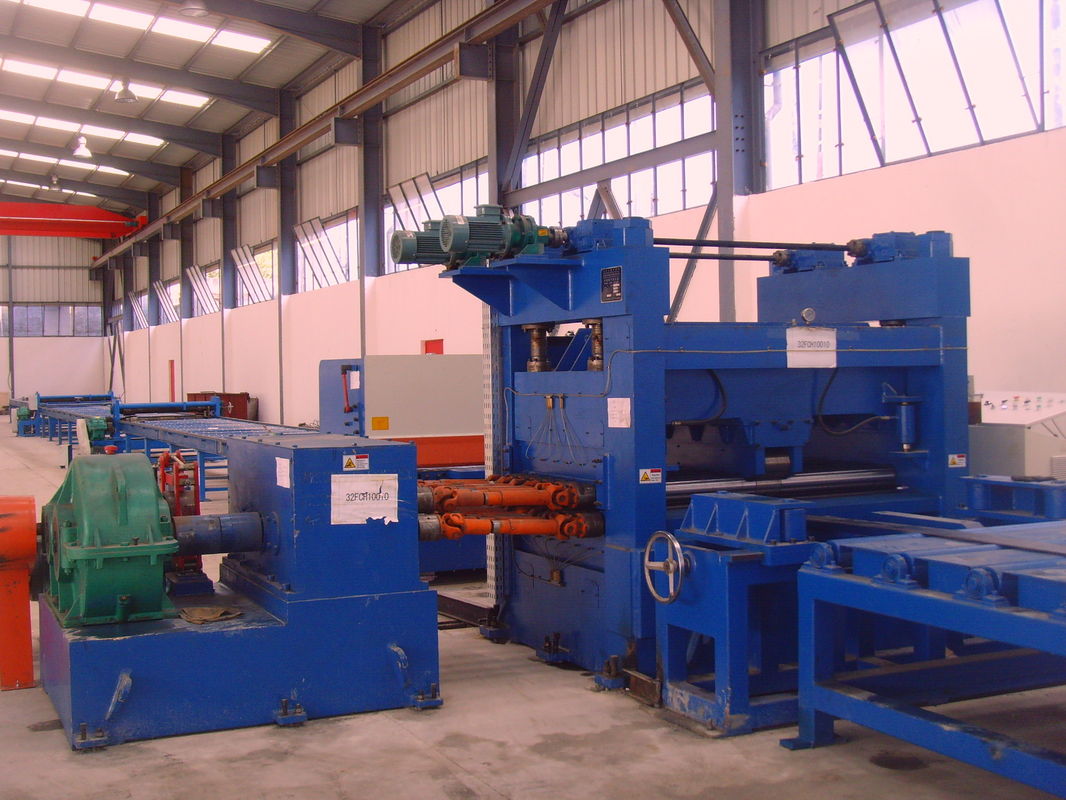

Large Image :  Stainess Steel Pre Painted Cut To Length Machine Uncoiling Leveling Coil Cutting Machine

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: T44QK series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Material: Q235 Or Q345 Mild Steel Loading Capacity: 200 Ton
Control Mode: Push Button Control, Wireless Remold Power: Battery



Stainess Steel Pre Painted Cut To Length Machine Uncoiling Leveling Coil Cutting Machine



Application:

This line is used for stainless coil with different specifications, through uncoiling-leveling-cutting to flattened plates as needed length.
This line is reasonable in layout, easy operation, high level of automation which could processing all kinds of stainless coil, colored coil, aluminum coil, galvanize coil or painted coil. This line is broadly applying in metal plate processing industry, like car, container, household appliance, packing, construction material, etc.
This line is composed of coil car, double head uncoiler, hydraulic pressing & guiding, shovel head, pinch device, leveler, servo length gauge device, pneumatic cluth shear, strap conveyer, pneumatic stacker, unloading car, electric system, etc. as well as rollaway nest, steering device, etc.



Parameters:



ModleName T44QK 0.8×1000

T44QK-

0.8×1250

T44QK-

1.5×1250

T44QK-

1.5×1600

T44QK-

2×1250

T44QK-

2×1600

T44QK-

3×1600

T44QK-

3×2000

Coil Thickness(mm) 0.15-0.8 0.15-0.8 0.3-1.5 0.3-1.5 0.3-2 0.3-2 0.3-3 0.3-3
Coil Width(mm) 600-1000 600-1300 800-1300 800-1600 800-1300 1000-1600 1000-1600 1000-2000
Cutting Length Range(mm) 10.0-9999 10.0-9999 10.0-9999 10.0-9999 10.0-9999 10.0-9999 10.0-9999 10.0-9999
Stacking Length Range(mm) 300-4000 300-4000 300-4000 300-4000 300-4000 300-4000 300-4000 300-4000
Cutting Length Precision(mm) ±0.3 ±0.3 ±0.3 ±0.3 ±0.3 ±0.3 ±0.5 ±0.5
Cutting Speed(pcs/min) 15-18 15-18 15-18 15-18 15-18 15-18 15-18 15-18
Coil Weight(T) 15 15 15 15 15 15 20 20





 Packageing & Delivery
Packaging details:Plywood case
Delivery detail: 55-60 days



Why Choose Us?
Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

Questions:
1. Are you a trading company or factory?
  --- We are factory occupying more than 62,000 m2,  with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
  --- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
  --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
  --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

5. Can I go to visit your factory?
  --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
  --- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
