Hydraulic Control Reaming Drill Press Radial Drilling Machine Large Workpieces

China Hydraulic Control Reaming Drill Press Radial Drilling Machine Large Workpieces supplier
Hydraulic Control Reaming Drill Press Radial Drilling Machine Large Workpieces supplier Hydraulic Control Reaming Drill Press Radial Drilling Machine Large Workpieces supplier Hydraulic Control Reaming Drill Press Radial Drilling Machine Large Workpieces supplier

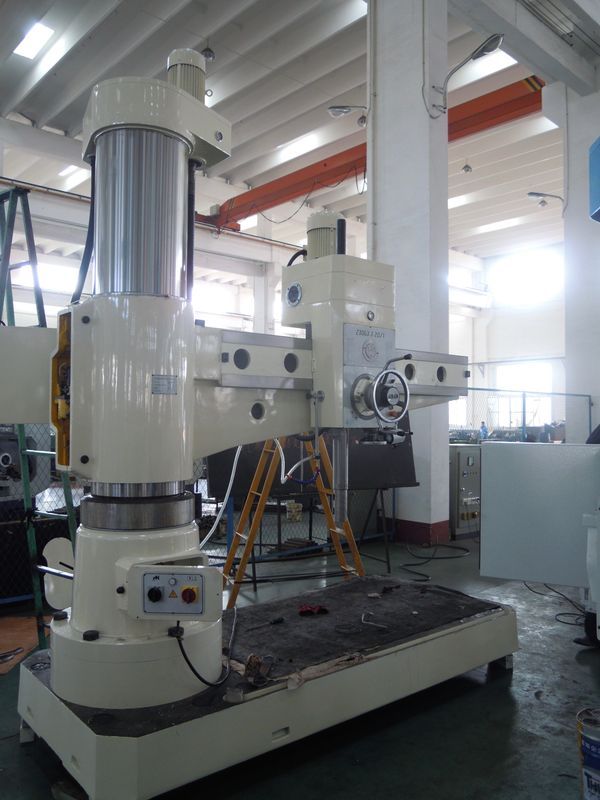

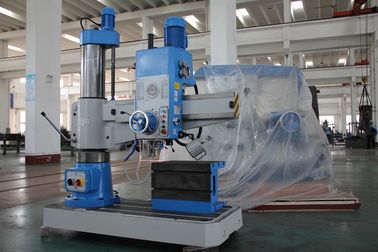

Large Image :  Hydraulic Control Reaming Drill Press Radial Drilling Machine Large Workpieces

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: Z3080x25

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Material: Q235 Or Q345 Mild Steel Max Drilling Hole Diameter: 63 Mm



Hydraulic Control Reaming Drill Press Radial Drilling Machine Large Workpieces



Application:


Have universal purposes, adaptable for driling, reaming, milling on middle and large workpieces, boring can be also operated

Quick Details:


Machine type: reaming drill
Max drilling diameter: 80mm
Advantage: Hydraulic control
Clamp system: hydraulic type
Ram motion: hydraulic control and manual operation

Technical Parameters:
Mode: Z3080x25



Table 800X560X1000
Dimensions of Box Table 800X1000
T-slot of box 7
Distance between two adjacent T-slots 150
Width of T-slot of box 22
Dimensions of base 3530X1400X300
Working surface of base 1200X2380
T-slot/Width/Distance Of BASE 4/28/276
Max. load of Table
machining range :
Distance from spindle axis to column 500-2500
Distance from spindle nose to table surface 550-2000
spindle head travel(horizontal)
spindle :-
spindle taper (Morse No.6)
Quill travel 450
Max.drilling diameter 80
Max.tapping diameter
Speed Range /steps 16-1250(16)
Max.output torque of spindle 1568
Spindle feed/steps 0.04-3.2/16
Motor
Spindle motor power 7.5
Elevating motor 3
Coolant pump 0.125






Packing list

No. Name Specification Qty Remark
1 Machine   1
2 Table   1 It is on the base of the machine.
3 Hexagon nut M24 8 pieces

There are 4 pieces

on the machine.

4 Hexagon nut M48 4 pieces
5 Hexagon bolt M24 ×60 4 pieces

They are all

on the machine.

6 Foundation bolt M24×600 6 pieces
7 Foundation bolt M48×800 6 pieces
8 T-slot bolts M24×95 6 pieces

There are 4 pieces

on the machine.

9 Washer 24 8 pieces

There are 4 pieces

on the machine.

10 Washer 48 4 pieces

There are 5 pieces

on the machine.

11 Hanging sleeve   1
12 Sling dog   2
13 Sling   2







Technical document
No. Name Qty Remark
1 Operation manual 1
2 Radial drilling machine installation guide 1
3 Packing list 1
4

MT3/1;3/2;4/3;6/4; 6/5



Each 1



Wearing Parts:

No. Name Specification Qty Remark
1 Washer 4 5
2 Washer 6 5
3 Washer 8 5
4 Washer 10 5
5 O shape ring 7×1.9 5
6 O shape ring 9×1.9 5
7 O shape ring 11×1.9 5
8 O shape ring 13×1.9 5







 Packageing & Delivery
Packaging details:Plywood case
Delivery detail: 55-60 days



The Main Structure Character

 Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.


Why Choose Us?
Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

Questions:
1. Are you a trading company or factory?
  --- We are factory occupying more than 62,000 m2,  with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
  --- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
  --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
  --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

5. Can I go to visit your factory?
  --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
  --- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
