Heavy Duty Radial Drilling Machine Hydraulic Control And Manual Operation Z3040x13

China Heavy Duty Radial Drilling Machine Hydraulic Control And Manual Operation Z3040x13 supplier
Heavy Duty Radial Drilling Machine Hydraulic Control And Manual Operation Z3040x13 supplier Heavy Duty Radial Drilling Machine Hydraulic Control And Manual Operation Z3040x13 supplier Heavy Duty Radial Drilling Machine Hydraulic Control And Manual Operation Z3040x13 supplier Heavy Duty Radial Drilling Machine Hydraulic Control And Manual Operation Z3040x13 supplier Heavy Duty Radial Drilling Machine Hydraulic Control And Manual Operation Z3040x13 supplier Heavy Duty Radial Drilling Machine Hydraulic Control And Manual Operation Z3040x13 supplier Heavy Duty Radial Drilling Machine Hydraulic Control And Manual Operation Z3040x13 supplier

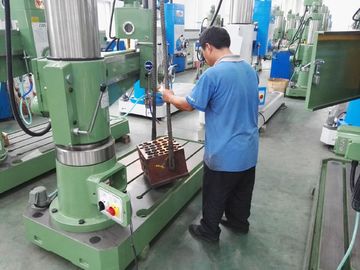

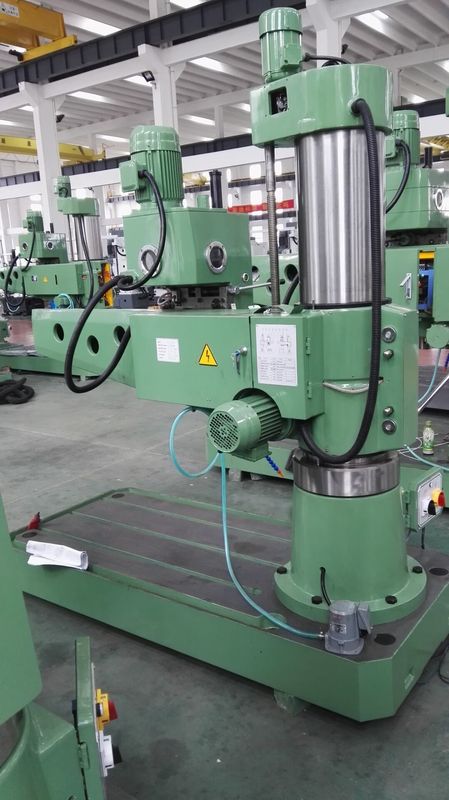

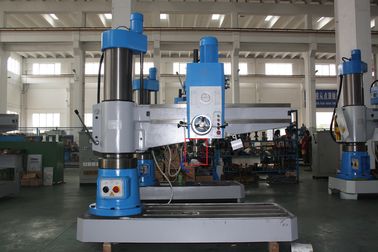

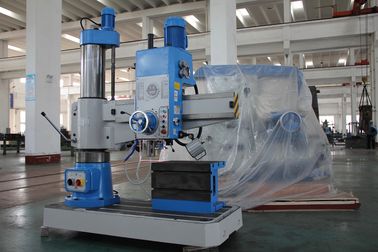

Large Image :  Heavy Duty Radial Drilling Machine Hydraulic Control And Manual Operation Z3040x13

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: Z3040X13/2

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Material: Q235 Or Q345 Mild Steel Max Drilling Hole Diameter: 40 Mm

Heavy Duty Radial Drilling Machine Hydraulic Control And Manual Operation Z3040x13


Application:
Have universal purposes, adaptable for driling, reaming, milling on middle and large workpieces, boring can be also operated

Quick Details:
Machine type: reaming drill
Max drilling diameter: 40mm
Advantage: Hydraulic control
Clamp system: hydraulic type
Ram motion: hydraulic control and manual operation

Technical Parameters:
Mode: Z3040x13/2

 unitZ3040x13/2
worktable :-
Dimensions of Box Tablemm600X450X450
T slot of box tableno5/18/150
Dimensions of Basemm2050X900X200
Working Surface of Base Platemm1330X750
T slot of base 3/22/225
Max. load of worktablekg
machining range :-
spindle axis to columnmm300-1300
spindle nose to table surfacemm300-1120
spindle head travel(horizontal)mm1000
spindle :-
Spindle taper MT4
quill travelmm280
Max.drilling diametermm40
Max.tapping diametermm
spindle Speed Range /stepsrpm32-2500/16
Max.spindle torqueNm300
spindle feed/steps 0.1-1.25/8
motor
spindle motor powerkW3
elevating motor for ArmkW1.1
coolant pumpkW0.09
-others
clamping type MANUAL

overall dimension (L*W*H)mm2100X900X2490
package dimension (L*W*H)mm2190X106X2400
N/WKG2500










































Packageing & Delivery
Packaging details:Plywood case
Delivery detail: 55-60 days



The Main Structure Character

 Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.


Why Choose Us?
Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

Questions:
1. Are you a trading company or factory?
  --- We are factory occupying more than 62,000 m2,  with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
  --- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
  --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
  --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

5. Can I go to visit your factory?
  --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
  --- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
