Product Details:
Payment & Shipping Terms:
|
| Processing Product Diameter: | 1000-3600mm (customizable) | Edge Height: | 20-50mm |
|---|---|---|---|
| Thickness Of Spiral Edge Material: | (2-6)mm | ||
| High Light: | No need changing molds Spinning Machine,Servo Edge Spinning Machine,2mm Edge Spinning Machine |
||

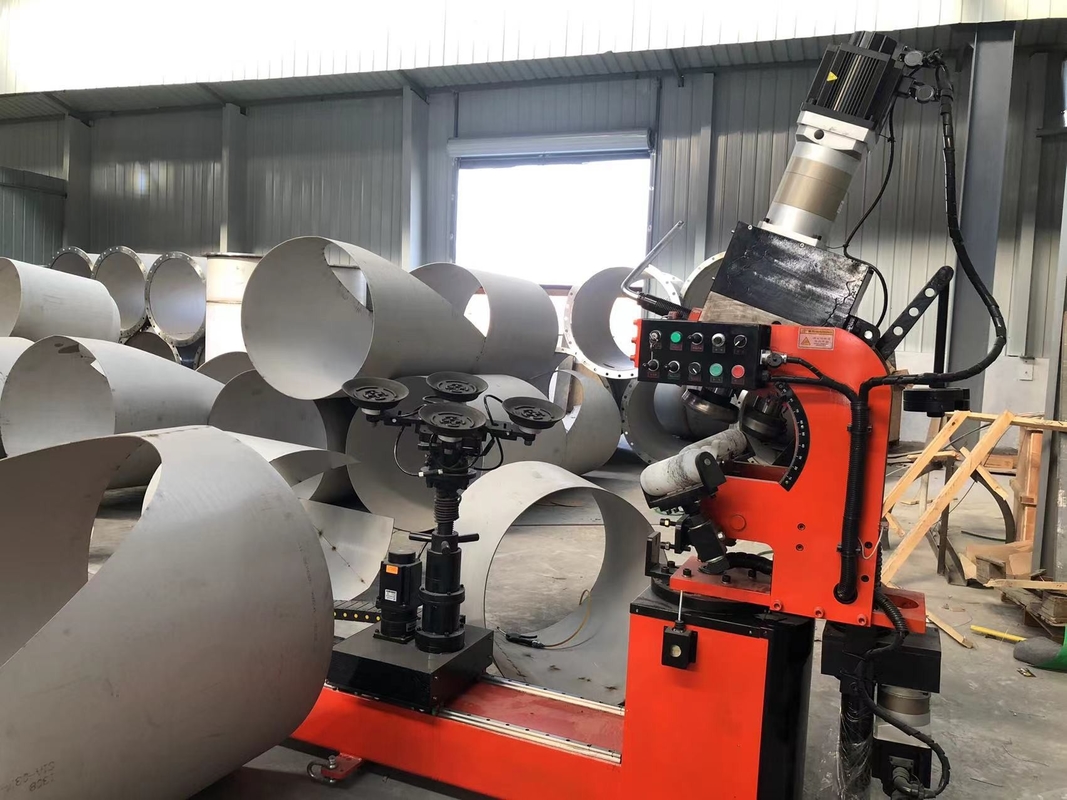

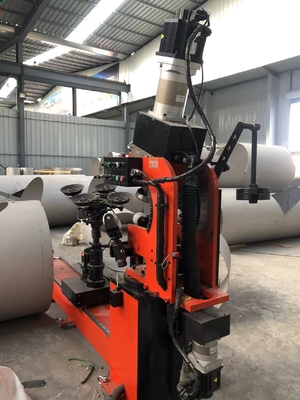

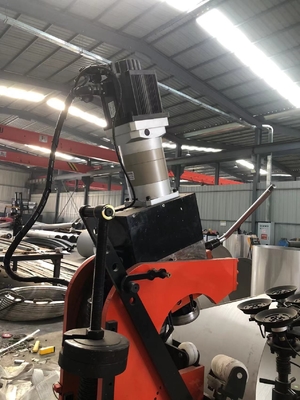

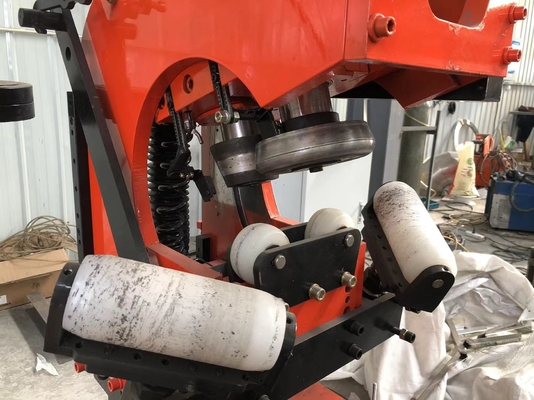

Servo edge spinning machine is a type of mold free edge spinning equipment that can rotate irregular head devices such as circular, elliptical, and square shapes. Widely used in industry, large water tanks, oil tanks, and head equipment.
Product parameters
Edge height: 25-50mm
Thickness of spiral edge material: 2-6mm
Spinning material: carbon steel
Minimum arc radius: greater than or equal to 280mm
Processing product diameter: 1000-3600mm (customizable)
Spinning speed: 1000-2500mm per minute
Main motor: 3KW servo motor
Rotating edge motor: 2KW servo motor
Sliding table guide rail: upper silver linear guide rail
Rail length: 2000mm
Electric lifting: 1 set
Fixed method: suction cup
Input voltage: AC220V/3 × 380V ± 10V
Power frequency: 50Hz
Rated voltage of the host: 380V
Suction cup motor voltage: 220V
