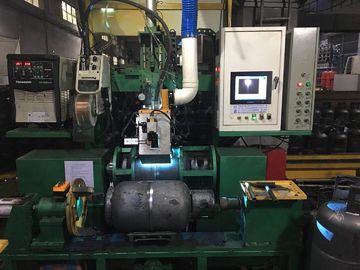

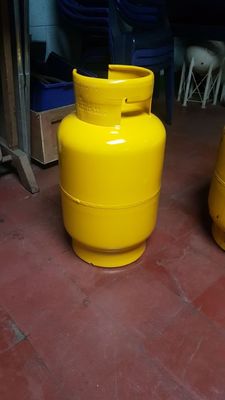

Gas Bottle Welding Cnc Spinning Lathe Machine For Natural Gas Pressure Vessel Making
The cook/gas bottle seam welding system(Single gun circle seam automatically welding machine (equipped with submerged welding machine, adopts machine head and tail base with double actuating mechanism)
1)Including: single gun circle seam welding main machine, DC-600/NA5 Lincoln submerged welding machine, flux recovery machine and mounting bracket, circle seam laser tracking system
|1||Single gun circle seam welding main machine||1 set|
|2||DC-600/NA5 Lincoln submerged welding machine||1 set|
|3||Flux recovery machine and mounting bracket||1 set|
|4||All necessary documents||1 set|
|5||Circle seam laser tracking system||1 set|
2)Welding way: submerged welding
3)Nature gas cooking bottle welding Features:
worker needs to load gas bottle, but automatic down-loading bottle.
4) Equipment description

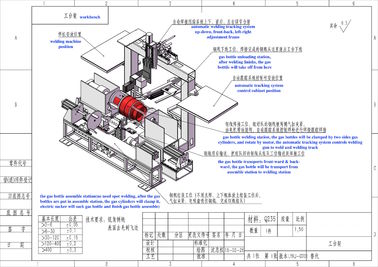

The system is divided into three parts. The first part is the tracking system module, the second part is the mechanical workbench module, the third part is the welding welder module.
cooking bottle Tracking system module:
The module uses a laser tracking system. The control principle is to pump the laser to the bottle body through the laser transmitter, then collect the image through the industrial camera, then the image processing is carried out in the central processor, and the welding seam position is obtained. Finally, the position of the welding torch is matched with the calculated welding gun position by the actual welding gun position, and the position distance is calculated. The central processor notifies the mobile module to control the mobile machine to move to the designated position. When the central processor monitors the mobile stop, the image acquisition operation is repeated and repeated actions are repeated.
gas bottle Machine tooling module:
The module adopts the traditional submerged arc welder, and has a main control cabinet. The control cabinet is controlled by the main control caching station, the monitoring of the welding time in the welding, and the automatic operation function of all links of the bottle, welding and bottle. At the same time, the control cabinet also communicates with the laser tracking system, including the start of the laser tracking system, the end of welding tracking, temporary stop, analog debugging and welding.
natural gas pressure bottle Welding machine module:
This module is a special welding machine for submerged arc welding. When the seam position is found in the tracking system, the welding machine is controlled by the mechanic assembly module, and the welding machine is stopped at the end of the welding machine.
