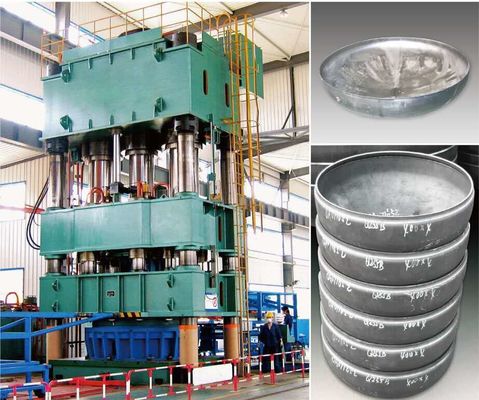

Large Image :  Vertical Hydraulic Press Machine 1000 Ton For Max 1000 Mm Round And Ellipse Dish End

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: YD1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Machine Power: Hydraulic Type Usage: Professional For Dish End
Dish End Size: Max 1000 Mm Diameter Capacity: 1000 Ton

Dish end Hydraulic Press Machine 1000 ton for max 1000 mm round and ellipse dish end

Main use and working conditions of the machine:

1 Can realize the constant pressure, the constant stroke- two forming processes, with the holding pressure time delay function setting, time delay adjustable. Working pressure and stroke can be adjusted according to the requirements of the regulation, and the operation is simple and convenient.

2 Application areas: applicable to all drawing, bending, forming and other processes. Large automobile, agricultural vehicle covers and other parts. Forging, dish end, stainless steel sink, bath etc.. Ships, aviation, aerospace and other fields.

3 optional accessories or features: punching buffer device, the edge press slider, photoelectric protection device, with floating guide rail for changing tooling, and mobile working platform, tooling rapid clamping mechanism, stroke, pressure, speed device.

4 machine with independent hydraulic system control cabinet, electrical system. Can realize the adjustment, the semi automatic two kinds of working ways, in the semi automatic operation method has the pressure keeping and the automatic return function.

5 equipment working conditions:

5.1 equipment working area temperature: -10~60 C (+)

5.2 power supply voltage: 380V three-phase four wire system, voltage fluctuation range: 380V + 10%, 50HZ.

5.3 hydraulic system using medium: N46# - YB anti - wear hydraulic oil.



The main structure of the machine:

1 the whole machine is three beam structure.

2 the machine body is for the 45 steel welded structure.

3 main cylinder is piston cylinder structure.

4 hydraulic systems is on the top of the machine main body or on the right side of the ground.



Main parameters:



No

Item

Unit

Value

1 Main cylinder pressure T 1000
2 liquid max working pressure MPa 25
3 Returning force T 150
4 main cylinder max stroke mm 800
5 Edge press cylinder pressure T 250X4
edge press cylinder stroke mm 800
6 Bottom cylinder pressure T 120
Bottom cylinder stroke mm 400
7 Max open height mm 1600
8 Piston speed Fast down mm/s 100-150
Reducing speed down 30-50(adjust)
Slow speed adding pressure 5-16
Fast open 100-120
9 Worktable size L-R mm 1500
F-R 1600
10 main motor power KW 45+30
11 Machine weight T 63



The main structure and performance:

Four column hydraulic press machine is mainly composed of mechanical parts, hydraulic transmission and electrical control of three parts.

1 Mechanical parts:

1.1. Machine main body, the main cylinder, pumping stations, operating cabinets, and other components.

1.2 Machine main body is 45# steel welded structure. Through the high temperature annealing furnace to eliminate the stress, so that the accuracy of maintaining good, small deformation. The ram is connected with the piston of the master cylinder by a flange, and the piston is provided with a guide and anti deflection capability. Can ensure the accuracy and the use effect. And worktable pad has T slot, you can use the T shaped bolt to install workpiece and tooling, T slot size and spacing according to user requirements.

1.3 master cylinder: the main cylinder is a single piston cylinder structure. The oil cylinder is fixed on the hole of the upper cross beam and fixed through the cylinder nut, piston bottom is connected with ram by flange. Piston rod surface hardening treatment.

1.4 master cylinder pressure using the pressure sensor detection and setting, the main cylinder with a pressure holding function, in which the time can automatically fill pressure, pressure drop limit pressure can be set according to user requirements. Pressure gauge detection and remote pressure regulating valve adjustment.

1.5 the stroke position of ram is detected and controlled by the linear displacement sensor; the stroke position of the hydraulic pad is controlled by proximity switch, and the maintenance is convenient.

1.6 oil cylinder is mainly sealed with high quality sealing ring (with a built-in four oil seal, three copper guide belt), to avoid the oil cylinder leakage, and has a good wear resistance, to extend the service life.

1.7 color machine appearance color provided by the user making.
