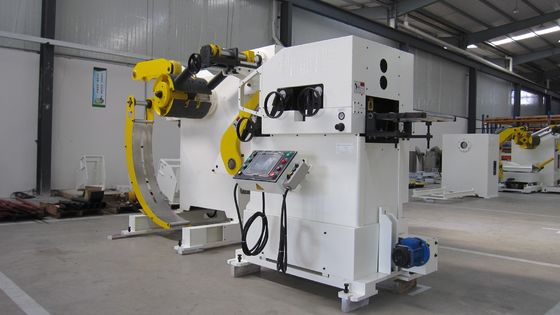

Medium Thickness Sheet 3 In 1 Coil Feeding Line For Mild Steel / Aluminum Steel

Medium Thickness Sheet 3 In 1 Coil Feeding Line For Mild Steel / Aluminum Steel
Medium Thickness Sheet 3 In 1 Coil Feeding Line For Mild Steel / Aluminum Steel Medium Thickness Sheet 3 In 1 Coil Feeding Line For Mild Steel / Aluminum Steel Medium Thickness Sheet 3 In 1 Coil Feeding Line For Mild Steel / Aluminum Steel Medium Thickness Sheet 3 In 1 Coil Feeding Line For Mild Steel / Aluminum Steel

Large Image :  Medium Thickness Sheet 3 In 1 Coil Feeding Line For Mild Steel / Aluminum Steel

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: JINQIU
Certification: ISO, CQC,SGS
Model Number: NCSF6

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD or RMB
Packaging Details: properly rust-proof treatment, plywood case
Detailed Product Description
Metal Sheet Coil: Suitable Thickness 0.3-4.5mm Coil Width: 70--1000mm
Function: Automatic Feeding For Hydraulic Press Or Mechanical Press Machine
High Light:

decoiler straightener feeder

,

roll feeder machine

Medium thickness sheet 3 in 1 coil feeding line for mild steel, stainless steel, aluminum steel



Model:

NCSF6



Application:

For 0.3-4.5mm medium thickness sheet thickness coil uncoiler, straightener & feeder



Characteristic:
1. 3 in 1 line, the straightening rollers adopts piston cylinder to finish loosing mode instead of tranditional air cylinder. It is suitable for 0.3--4.5 mm medium thickness material with 70-1000mm width coil punching uncoiling, straightening and feeding

2, the uncoilling frame spindle adopts hydraulic expansion system, coiller drum is wedge form slider structure, automatic locking and loosening coil material, feeding width adjusting by two gauge roller screws, when  discharge coil, the air cylinder will rise outer roller to avoid blocking material, it makes loading-unloading coil easily,  high reliability, low labor intensity, good safety, and is equipped with a pressing arm, so that the material is not loose, the coil discharge adopts photoelectric induction system, automatic feeding, and adopts pneumatic device lift material, control material feeding arc, to let the material into machine smoothly.
3, straightening rollers is high-strength alloy bearing steel, with a series of heat treatment (quenching), lathe, high frequency treatment, hard chromium plating, grinding, grinding, strictly ensure the smooth surface, precision reached 0.01mm.
4, Adopt the two rollers pinch press structure, through motor reducer , drives the upper and lower pinch roller working,  send the material head to straightening machine.
5, Straightening device uses four worm gear to adjust, by hand wheel rotation, worm drive, worm gear, drive the upper slider for lifting, so as to achieve the amount of pressure regulation. The adjusting hand wheel is provided with an adjusting dial plate, and display the adjusting amount accurately.
6, Straightening and loosing adopts eccentric structure, adopts double cylinder, straightening cylinder ventilation,upper slider cylinder piston driven by the pressure,when loose, air cylinder witll lift material by upper slider. Because the exhaust pipe is equipped with an exhaust valve when loosing, the loosing speed is fast.
7, worm gear lifting device can adjust feeding height within 100, suitable for customers for different  product mold height, convenient adjustment, labor saving and reliable.


Medium Thickness Sheet 3 In 1 Coil Feeding Line For Mild Steel / Aluminum Steel 0

Medium Thickness Sheet 3 In 1 Coil Feeding Line For Mild Steel / Aluminum Steel 1



Machine Overall Size Drawing:

Medium Thickness Sheet 3 In 1 Coil Feeding Line For Mild Steel / Aluminum Steel 2

Medium Thickness Sheet 3 In 1 Coil Feeding Line For Mild Steel / Aluminum Steel 3



Stranghtening Performace Charte:



Model material thickness [mm]
0.3-0.8 1.0 1.6 2.3 2.5 2.8 3.2 4.5

feeding width

[mm]

NCSF6-400A 400 370 300 160
NCSF6-500A 500 320 270 160
NCSF6-600A 600 360 290 250 160
NCSF6-800A 800 480 320 250 220 150
NCSF6-1000A 1000 430 330 290 230 200 110



Machine Models:





Model NCSF6-400A NCSF6-500A NCSF6-600A NCSF6-800A NCSF6-1000A
Material width[mm] 70~400 70~500 70~600 70~800 70~1000
Material thickness[mm] 0.3-4.5
Max coil weigth [kg] 3000(5000) 5000(7000)
coil inner diameter[mm] 508
coil outer diameter [mm] 1400
max speed[m/min] 22
feeding accuracy [mm] ±0.15
straightening rollers [mm] ¢68×7 PCS(UP 4/ BOTTOM3)
feeding rollers [sets] 1
feeding heights[mm] 1200±100
voltages 220VAC 60HZ/AC380v 50HZ

air pressure[kg/cm2]



5kg/cm2
coil expansion mode hydraulic
servo motor[kw] AC4.4 AC5.5

uncoiler motor

[kw]

1.5(2.2) 2.2(3.7)
