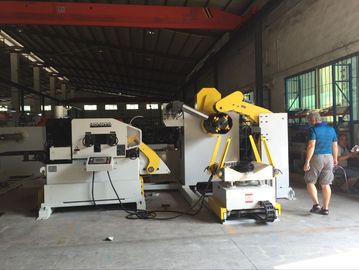

3 In 1 Decoiler Straightener Feeder Matched With Mechanical Press Machine

3 In 1 Decoiler Straightener Feeder  Matched With Mechanical Press Machine
3 In 1 Decoiler Straightener Feeder  Matched With Mechanical Press Machine 3 In 1 Decoiler Straightener Feeder  Matched With Mechanical Press Machine 3 In 1 Decoiler Straightener Feeder  Matched With Mechanical Press Machine 3 In 1 Decoiler Straightener Feeder  Matched With Mechanical Press Machine 3 In 1 Decoiler Straightener Feeder  Matched With Mechanical Press Machine

Large Image :  3 In 1 Decoiler Straightener Feeder Matched With Mechanical Press Machine

Product Details:
Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: NCHW3A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Detailed Product Description
Constitution: Decoiler,straightener,press,feeder Usage: For Coil Material Automatic Production
High Light:

decoiler and straightener

,

hydraulic press machine

3 In 1 Decoiler Straightener Feeder Matched With Mechanical Press Machine



Machine main features:

1. Adopt specially treated straightening rollers, especailly suitabe high streching steel, enhancing the processing precision



2. Electric straightening precision adjustment, it is easier to adjust by eletric than by manual type



3. Electric electronic parts adopted EUROPEAN STANDARD producs: better in safety, stability, lifetime and so on



3 In 1 Decoiler Straightener Feeder  Matched With Mechanical Press Machine 0

3 In 1 Decoiler Straightener Feeder  Matched With Mechanical Press Machine 1

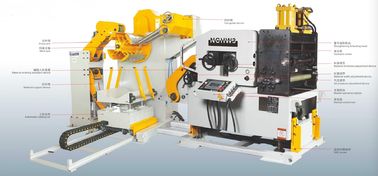

  • Main accessories

1) Electric eye loop control system, controlling the decoiler to release strips automatically. When strips touch the light sent out by the device, the decoiler will stop to work, on the contrary, when the strips left the light, machine will start to work again.

2) Feeding and straigtening rollers adopted Gr15, and all rollers finished heat treated, hard chrome plated, ground etc, hardness comes 60°-62°

3) Outgoing Catenary to assist and support the material, guiding strips to the moulds automatically.

4) Press arm device, holding strips firmly when released by the decoiler, preventing coil too loose.

5) Feeding line easily adjusts by advance worm gearscrew jacks device, the straightener feeding part can be adjusted by the lifter which was driven by motor

6) Uncoiler inverter device. With inverter, the decoiler's rolling speed is adjustable, further more, under protect of the inverter, the decoiler has much longer life time.
7) Machine equipped with four worm gear micro adjust device with daily percentage chart, easy to opearte, having high adjustment accuracy.
8) Machine equipped with threading table device and coil tip flatness device. the tip of the coil maybe exist curved upward, after strips were guided to the entrance of the straightener feeder part, with the coil tip flatness device, it can press the tip and making the strips entering the feeding rollers easily.
9) The uncoiler contain the butterfly brakes aire compressor.
10) Machine equipped with Siemens servo motor, full sets of Schneider low voltage components, controlled by Siemens PLC etc.
