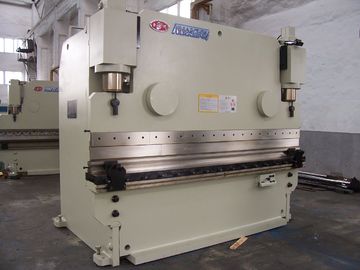

Hydraulic Cnc Sheet Metal Bending Machine With 250 Ton From 47 Years Factory

China Hydraulic Cnc Sheet Metal Bending Machine With 250 Ton From 47 Years Factory supplier
Hydraulic Cnc Sheet Metal Bending Machine With 250 Ton From 47 Years Factory supplier Hydraulic Cnc Sheet Metal Bending Machine With 250 Ton From 47 Years Factory supplier Hydraulic Cnc Sheet Metal Bending Machine With 250 Ton From 47 Years Factory supplier Hydraulic Cnc Sheet Metal Bending Machine With 250 Ton From 47 Years Factory supplier Hydraulic Cnc Sheet Metal Bending Machine With 250 Ton From 47 Years Factory supplier

Large Image :  Hydraulic Cnc Sheet Metal Bending Machine With 250 Ton From 47 Years Factory

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: WC67Y-250/3200;WC67Y-250/4000;WC67Y-250/5000;WC67Y-250/6000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Pressure: 250 Ton Working Length: 3200mm/4000mm/5000mm/6000mm





Model: WC67Y-250/3200

Details:

Mode: WC67Y-250/3200

Norminal Press: 250 ton

Length of Table: 3200mm

Distance between Housing: 2650mm

Throat Depth: 400mm

Ram Stroke: 250mm

Ram Speed: 80/7/70 mm/s

Open Height: 520 mm

Main Motor: 15 Kw

Volume of oil tank: 560L

Weight: 14500 kgs

Overall Dimensions: L 3410 mm

                                 W2300 mm

                                 H 3065 mm



WC67Y-250/4000

Technical Parameters:

Mode: WC67Y-250/4000

Norminal Press: 250 ton

Length of Table: 4000mm

Distance between Housing: 3100mm

Throat Depth: 400mm

Ram Stroke: 200mm

Ram Speed: 80/7/70 mm/s

Open Height: 520 mm

Main Motor: 15 Kw

Volume of oil tank: 670L

Weight: 15800 kgs

Overall Dimensions: Length 4210 mm

                                 Width  2300 mm

                                 Height 3065 mm



WC67Y-250/5000

Technical Parameters:

Mode: WC67Y-250/5000

Norminal Press: 250 ton

Length of Table: 5000mm

Distance between Housing: 4000mm

Throat Depth: 400mm

Ram Stroke: 250mm

Ram Speed: 80/7/70 mm/s

Open Height: 520 mm

Main Motor: 15 Kw

Volume of oil tank: 800L

Weight: 18500 kgs

Overall Dimensions: Length 5210 mm

Width 2300 mm

Height 4160 mm



Quick Details:

Condition: New

Material/ Metal Processed: Carbon Steel

Extra Service: Machining

Electric componets: Schneider famous brand

Other parts: Ball screw, servo motor....

Place of Origin: Wuxi city, Jiangsu, China,

Machine Type: Press Brake

Power: Hydraulic

Color: white, blue, yellow....

Control syste: E21, DA41, DA52, DA66T....

Usage range: Bending metal sheet.



Packageing & Delivery

Packaging details: metal frame

Delivery detail: 55-60 days







The Main Structure Character

 Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.





Why Choose Us?

Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.



Questions:

1. Are you a trading company or factory?
  --- We are factory occupying more than 62,000 m2,  with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
  --- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
  --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
  --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.


5. Can I go to visit your factory?
  --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
  --- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
