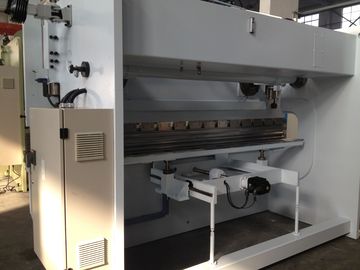

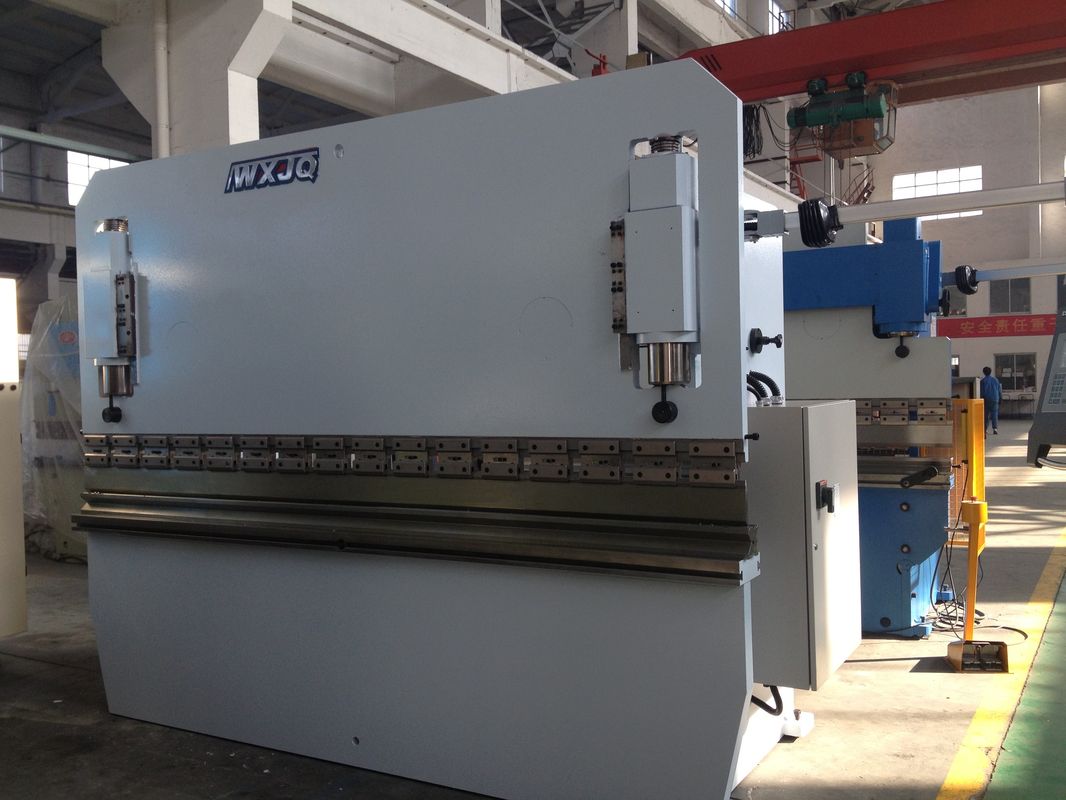

Mild Steel Stainless Steel Aluminum Sheet Metal Press Brake / Hydraulic Metal Brake Machine

Mild Steel Stainless Steel Aluminum Sheet Metal Press Brake / Hydraulic Metal Brake Machine

Technical Parameters:

Mode: WC67Y-40/2500

Norminal Press: 40 ton

Length of Table: 2500mm

Distance between Housing: 1650mm

Throat Depth: 200mm

Ram Stroke: 100mm

Ram Speed: 65/8/70 mm/s

Open Height: 340 mm

Main Motor: 4 Kw

Volume of oil tank: 145L

Weight: 3200 kgs

Overall Dimensions: L 2850 mm

                                 W 1469 mm

                                 H 2145 mm

Production Characters:

1. The steel-welded frame could make sure high strength, hight rigidity and high accuracy

2. Using of mechanical forced synchro system, both sides of sliders move in parallel by synchro axis.

3. Deflection compensation unit is installed in the upper mould, upper mould clamping device is an option.

4. When NC press Brake, X-axis backgauge is driven by servo motor, adoapted ball-screw and linear guide way

5. When NC press brake, ram stroke are controlled by servo motor, it could make sure higher positioning accuracy

Optional for customer:

1. Color: customer can choose to match their existed machines.

2. Bending die toolings: the machine has included standard toolings, but we can also specially design according to customers workjobs.

3. Electrical components: we use Schneider brand

4. Bending Thickness: please calculate according to 650x thicknessx thicknessx length/ 8 x thickness, so 30 ton can bend max 1mm with 2500mm length. If shorter, it can bend more thickness.

5. Bending width range: max 2500mm

6. Certificate: CE, CQC, and ISO

7. Bending material: mild steel, stainless steel, aluminum steel
