Large Image :  Medium Transformer Manufacturing Machinery , Automatic Corrugated Plate Welding Machine

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: DYJ series

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Application: Winding Medium And Small Transformer Winding Width: 1450, 2000,2500mm
Center Height: 1000,1200,1600 Mm

Infrastruture:



To acheive our set production targets and meet the prescribed abjectives of an organization , our company has developed a state-of-the-art infrastructural set-up. We have installed latest machinery in our production department, which is upgrated on regular intervals to maintain an outstanding rate of production. Our infrastructure comprises designing, production, quality control and many other departments.

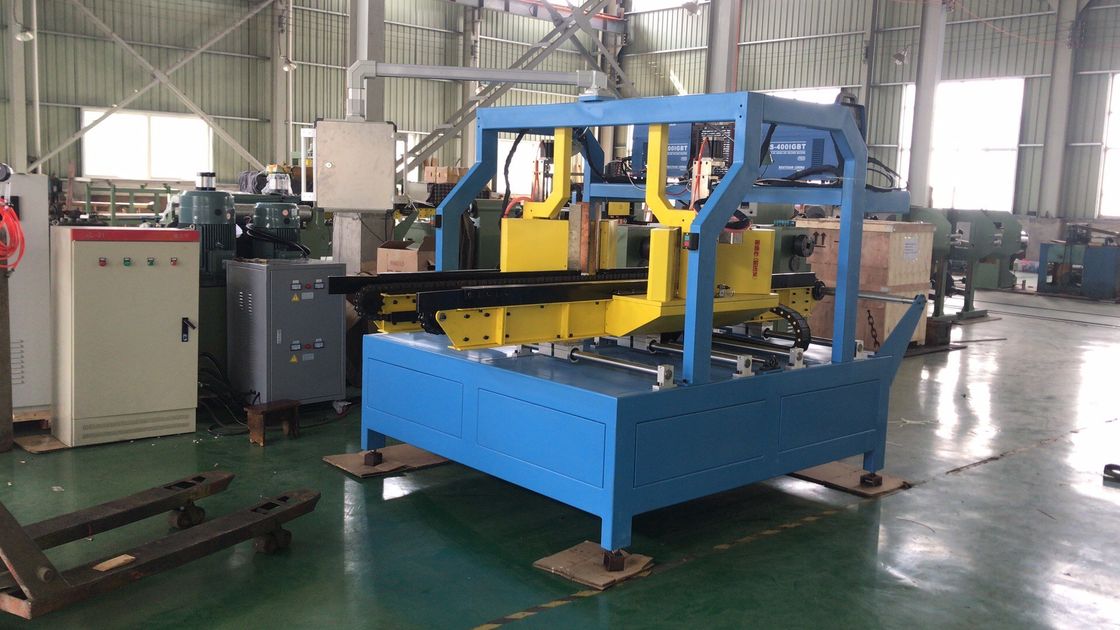

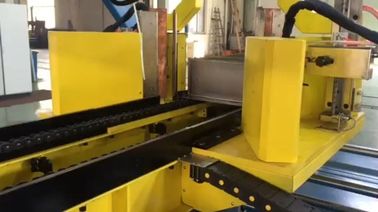

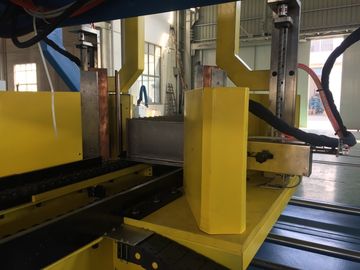

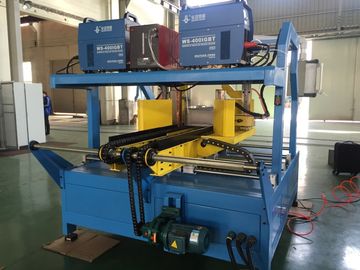

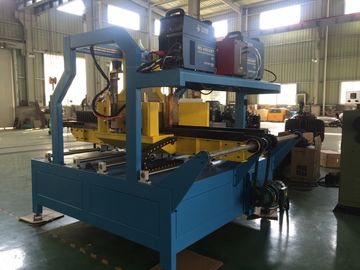

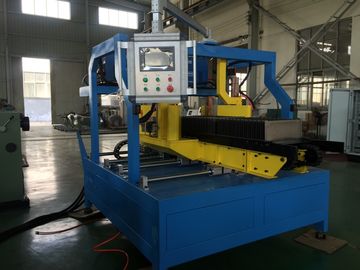

ZHJ-1600 automatic corrugated plate welding machine





Main Technical Parameters

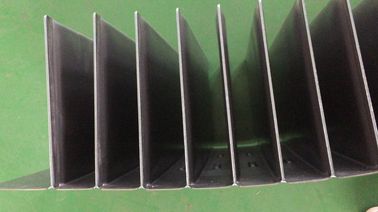

Corrugated sheet width

300-1600mm



Corrugated plate thickness

1.0-2.0m/m



Corrugated height less than

≤400 mm



Welding speed

25S(height 350)



Weld penetration

≥4.0 mm



Total motor power

17.6KW( containing argon arc welding machine, a cooling water tank)



Machine weight

2430Kg



The shape and size(L×W×H)

3300×1600×2200mm






Main device configuration tables



1.Pneumatic components:AIRTAC series

Guide, slider, wire rod: THK(Taiwan)

AC contactor:Chint or Delixi

Miniature relay:OMRON

Interface:SAMkoon

PLC:Japan's Mitsubishi

Welding machine:Zhejiang Kaierda

Medium Transformer Manufacturing Machinery , Automatic Corrugated Plate Welding Machine

Medium Transformer Manufacturing Machinery , Automatic Corrugated Plate Welding Machine

Medium Transformer Manufacturing Machinery , Automatic Corrugated Plate Welding Machine

The Manufacturer history in Transformer equipments/Machine:



we have been dedicating on development and production of transformer manufacturing equipment since 1984--the earest factory in China,with 120 staffs in this department.The products are widely adopted by customers all over the country and high praised by the users. In the equipment installation and commissioning phase, we can, upon the request of the buyer, send our onsite service force to give local technical instructions, free of charge, and provide training until the operator can skilled run the equipment independently.



Our Products have lasting performance, reliable quality, high efficiency and easy operation. The latest and most practical equipment for producing tranformer of wave-shape oil tank.



The warranty period for the machine is one year, and the user enjoys free warranty service within the warranty period. if the machine has failure beyond the warranty period, we will also help the user remove the difficulty and try our best to maintain and repair the machine with our zealously heart. we off lifelong service and spare parts .

Client Satisfaction
Being a clinet focused organization; we make every possible effort to supply products as per our client's desires and expectation. we also provide them customization solution, in which the products are designed and manufacured according to the specified details of our respectable clietele. Our assurance to make timely delivery of the bulk orders has also enable us in estalishing a respectable place in industry.
