Special design Transformer Tank Corrugated Band Fomer for transformer oil tank walls


Infrastruture:



To acheive our set production targets and meet the prescribed abjectives of an organization , our company has developed a state-of-the-art infrastructural set-up. We have installed latest machinery in our production department, which is upgrated on regular intervals to maintain an outstanding rate of production. Our infrastructure comprises designing, production, quality control and many other departments.



The Manufacturer history in Transformer equipments/Machine:



we have been dedicating on development and production of transformer manufacturing equipment since 1984--the earest factory in China,with 120 staffs in this department.The products are widely adopted by customers all over the country and high praised by the users. In the equipment installation and commissioning phase, we can, upon the request of the buyer, send our onsite service force to give local technical instructions, free of charge, and provide training until the operator can skilled run the equipment independently.



Our Products have lasting performance, reliable quality, high efficiency and easy operation. The latest and most practical equipment for producing tranformer of wave-shape oil tank.

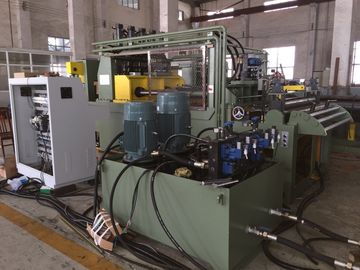

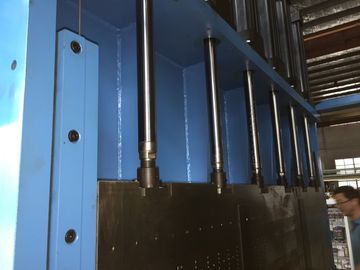

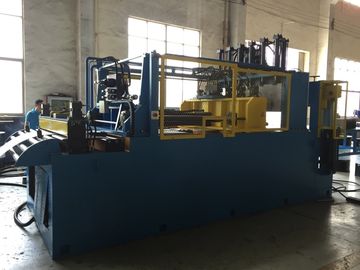

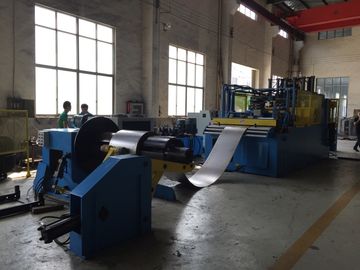

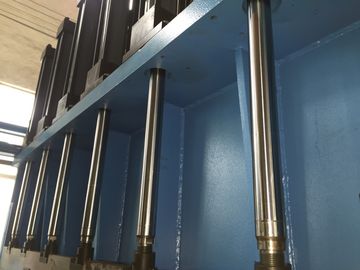

BW1600 -Corrugated Band Former

BW-1600Corrugated Band Former Main Technical Parameters



(Remarks: all of the technical parameters as below deviation as no more than 0.2%

  1. Steel Plate Width :B 300 ~1600mm
  2. Steel plate thickness:S 1.0 ~1.5mm
  3. Corrugation height :H 50~400mm
  4. Corrugation pitch:t ≥40mm
  5. Net clearance between corrugations :e 8mm
  6. Number of corrugation band sets :n 1~4
  7. Corrugation band length :L ≤2000mm
  8. Folding height:C 15~300mm
  9. Length of box board tips(front gap) :a ≥40mm
  10. Length of box board tips(rear gap) :b ≥40mm
  11. Total power of motors:W 35Kw
  12. Total weight: 25500Kg
  13. Floor space :13000×7100mm
  14. Equipment running frequency: 50Hz
  15. voltage::380V,3phase
  16. Unroller Max. Bearing weight :12000Kg
  17. Feeding lifter Max. Bearing weight:12000Kg
  18. Roll Coil inner diameter scope (Axis unrolleris hydraulic Braking open up and shrink):470~520mm
  19. Roll Coil Max. diameter :1200mm
  20. Unroller revolve speed:12rpm
  21. Hydraulic System need equip two individual filter system(Iron or metal filter system and normal material filter system)
  22. Corrugated Band Former need to meet Strength tendon embossing function (include provide related Template)





(mm)

(Corrugated plate width)

(mm)

(Height)

Strength tendon embossing(item)
700~1600

≥150

(include every10mm stride distance

1

≥250

(include every10mm stride distance

2






BW-1600 Corrugated Band Former Electrical and electronic control element supplier list(Domestic configuration)



NO NAME SUPPLIER
1

valve

Beijing huade

2

Electrical components

schneider
3

PLC, touch screen, frequency converter, servo

Xinjie;yineng

4

reducer

Hangzhou jiacheng

5

bearing

Shanghai bearing co., LTD

6

Oil cylinder

Shanghai shield g machinery co., LTD

7

Planetary gear reducer

Hubei planetary

8

The motor

Jiangsu dazhong

9

Ball screw, linear guide rail

Taiwan TBI
10 Oil cooler 8p

Zheyue machinery
