300 - 1300mm Steel Plate Width Corrugated Fin Forming Machine For Transformer Tank

China 300 - 1300mm Steel Plate Width Corrugated Fin Forming Machine For Transformer Tank supplier
300 - 1300mm Steel Plate Width Corrugated Fin Forming Machine For Transformer Tank supplier 300 - 1300mm Steel Plate Width Corrugated Fin Forming Machine For Transformer Tank supplier 300 - 1300mm Steel Plate Width Corrugated Fin Forming Machine For Transformer Tank supplier 300 - 1300mm Steel Plate Width Corrugated Fin Forming Machine For Transformer Tank supplier 300 - 1300mm Steel Plate Width Corrugated Fin Forming Machine For Transformer Tank supplier 300 - 1300mm Steel Plate Width Corrugated Fin Forming Machine For Transformer Tank supplier

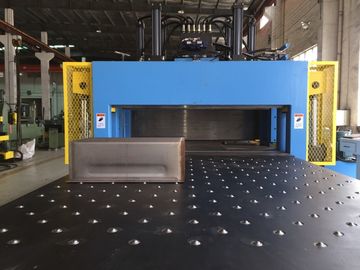

Large Image :  300 - 1300mm Steel Plate Width Corrugated Fin Forming Machine For Transformer Tank

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: BW-1300

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Application: Transformer Tank Fin Making Steel Plate Width: 300-1300mm
Number Of Corrugation Band Sets: 1-4 Sets Transformer Folding Height: 15-300mm

Corrugated Fin Forming Machine for Transformer Tank





Infrastruture:



To acheive our set production targets and meet the prescribed abjectives of an organization , our company has developed a state-of-the-art infrastructural set-up. We have installed latest machinery in our production department, which is upgrated on regular intervals to maintain an outstanding rate of production. Our infrastructure comprises designing, production, quality control and many other departments.



The factory history in Transformer equipments/Machine:



we have been dedicating on development and production of transformer manufacturing equipment since 1984--the earest factory in China,with 120 staffs in this department.The products are widely adopted by customers all over the country and high praised by the users. In the equipment installation and commissioning phase, we can, upon the request of the buyer, send our onsite service force to give local technical instructions, free of charge, and provide training until the operator can skilled run the equipment independently.



Our Products have lasting performance, reliable quality, high efficiency and easy operation. The latest and most practical equipment for producing tranformer of wave-shape oil tank.



Transformer tank forming machine Description:

  • Latest and most practical equipment for producing transformers tank
  • Machine consists of decoiler, coil car, fin forming machine, hydraulic system, electrical control system.
  • The function of machine including materials guidance, feeding, position guidance, materials pushing, front pack, rear pack, edge folding, shearing and of parts collection.
  • Machine is nice in outlooks, rational in structure and easy in operation(1-2 labors per shift).
  • Machine is renowned for hydraulic driving, automatic control, low noise, stable running and human-computer dialogue display. The computer unit in the machine can perform the processes of shearing, forming and edge folding at one stroke according to data input.
  • Machine has been proven for lasting performance, reliable quality, high efficiency and easy operation

Main Techincal Parameters



Item Parameters
Steel Plate Width (B) 300~1300mm
Steel plate thickness 1.0~1.5mm
Corrugation height (h) 50~400mm
Corrugation pitch (t) 40mm
Net clearance between corrugations (e) 6mm
Number of corrugation band sets (n) 1~4
Corrugation band length (L) 2000mm
Folding height (c) 15~300mm
Length of box board tips(front gap) (a) 40mm
Length of box board tips(rear gap) (b) 40mm
Total power of motors 25Kw
Total weight 17000Kg
Floor space 9000×6000mm
Equipment running frequency 50Hz
voltage 380V three-phase
Max. bearing weight of decoiler 6000Kg
Max. bearing weight of coil car 6000Kg
Roll Coil inner diameter scope 470~520mm (hydraulic operated)
Max. diameter of coil 1000mm
Decoiler revolve speed 12rpm
Hydraulic System equipped with two individual filter system(Iron or metal filter system and normal material filter system)
Embossing function is available:
Corrugated plate width(mm) Height(mm)

Number of

embossing

700-1300 150 (include every10mm stride distance) 1
250 (include every10mm stride distance) 2

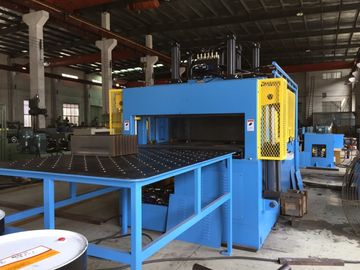

300 - 1300mm Steel Plate Width Corrugated Fin Forming Machine For Transformer Tank

The warranty period for the machine is one year, and the user enjoys free warranty service within the warranty period. if the machine has failure beyond the warranty period, we will also help the user remove the difficulty and try our best to maintain and repair the machine with our zealously heart. we off lifelong service and spare parts .

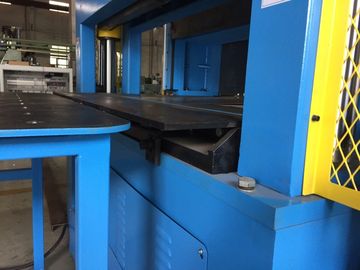

 300 - 1300mm Steel Plate Width Corrugated Fin Forming Machine For Transformer Tank

Client Satisfaction

Being a clinet  focused organization; we make every possible effort to supply steel coil corrugated fin forming machine as per our client's desires and expectation. we also provide them customization solution, in which the products are designed and manufacured according to the specified details of our respectable clietele. Our assurance to make timely delivery of the bulk orders has also enable us in estalishing a respectable place in industry.
