Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line

Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line
Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line

Large Image :  Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line

Product Details:
Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: 45 ton press/punching
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: exporting wooden case
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Detailed Product Description
Capacity: 45 Ton Usage: Making Aluminum Cap
Material: 0.2-0.22 Mm Thickness Aluminum Coil One Stroke: We Can Make 5-16 Caps, Up To Cap Size
Cap Making: One Time Punching Forming Accessories: Cap Die, Coil Feeding, Divider Cap And Rings, Collect Useless Material. Die Protection System
High Light:

hydraulic press machine

,

uncoiler and straightener

punching machine for aluminum cap production with aluminum coil feeding line



complete line for wine cap making:

the compelte wine bottle aluminum cap line insistes punching machine, cap die--one time punching forming die, cap aluminum coil holder frame, aluminum coil brush oil, blow finished cap, pull coil material servo control system, pull coil material, waste/useless material coilling, separate aluminum cap and waster/useless ring--the caps come out, the waster rings stay in the collection box, die protection system: during punching, it can protect die, if any cap is wrong, this system will stop the machine to protect die



Usage:

In China, only us can produce the whole line for wine cap and medicine cap. This line needs a lot of experiece to make let punching and feeding line cooperate very well. We are the most professional factory, in China, 80-90 cap makers use our machine.This cap professional line is specially designed for plastic mold, medicine bottle cap, wine bottle cap, cosmetic cap, it is used with high-speed punching machine



Cap making line technical paramters:

1)Punching machine/mechanical press machine details

Item 45
L S
Nominal pressure kN 450
Nominal pressure stroke mm 3.2
Stroke of slide mm 100 70
Stroke Variable spm 60-90 70-110
Single spm 80 100
Max. die set height mm 270 285
Die height Adjustment mm 60
Depth of throat mm 230
Distance between uprights mm 500
Bottom size of slide L-R mm 410
F-B mm 340
Hole for punch shank Diameter mm Φ50
Depth mm 60
Size of table L-R mm 810
F-B mm 440
Thickness mm 110
Size of opening in table Diameter mm Φ150
Single speed motor power kW 5.5
Overall dimension L-R mm 1080
F-B mm 1410
Height mm 2300
Total weight kg 4000





2) auxliary devices for the cap production line and making steps:

Wine cap production Step 1:cap punching die with 6 cavity---it means one stroke, we can get 6 caps, max we can produce 16 caps

Wine cap production Step 2:Cap aluminum coil holder frame

Wine cap production Step 3:Aluminum coil brush oil

Wine cap production Step 4:-Blow cap

Wine cap production Step 5:pull coil material servo control system

Wine cap production Step 6:Pull coil material and waste material coiling

Wine cap production Step 7:separate aluminum cap and waste ring,The caps come out, the waste rings stay in this cabilet

Wine cap production Step 8:Die protection system: during punching, it can protect die, if any cap is wrong, this system will stop the machine to protect die

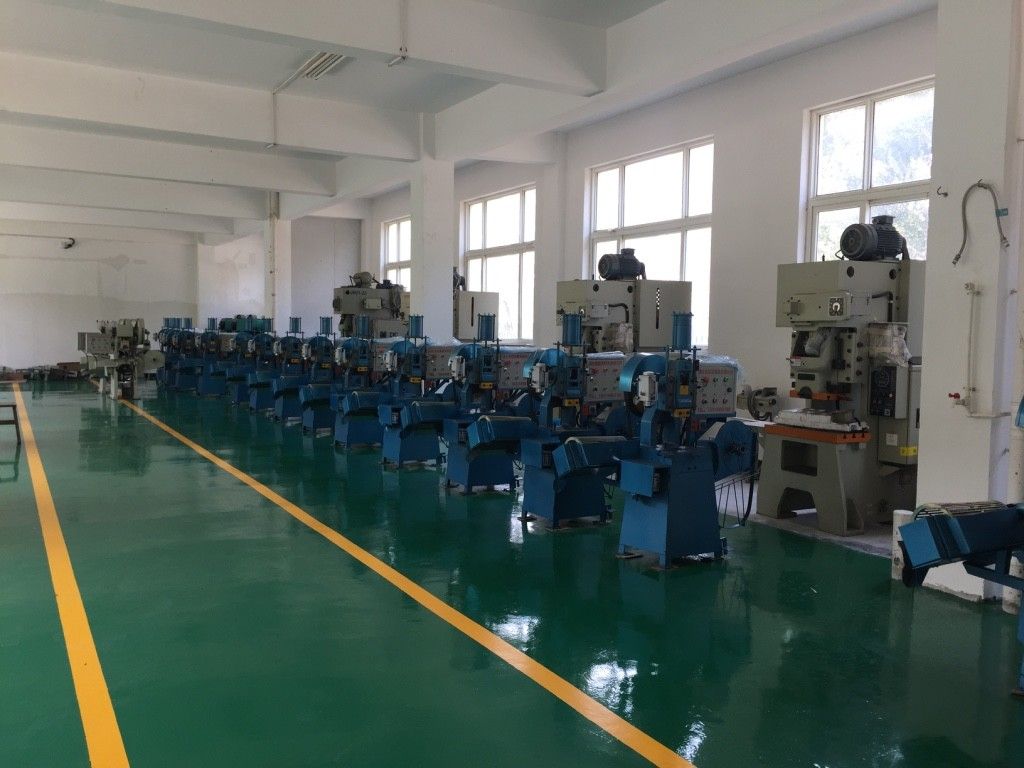

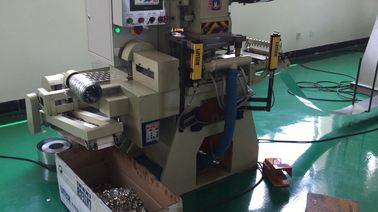

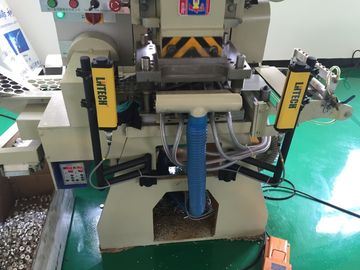

3)More details pictures

Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line 0

Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line 1

Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line 2

Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line 3

Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line 4

Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line 5

Aluminum Cap Production Hydraulic Punching Machine Aluminum Coil Feeding Line 6
