| Capacity: | 60 Ton | Special Design: | This Whole Line Is Specially Designed For Medicine Cap |
|---|---|---|---|
| Material: | 0.2-0.22 Aluminum | One Stroke: | One Stroke, We Can Produce 5-16 Caps, Depends On Cap Size |
| Cap Making: | One Time Punching Can Form The Cap Shape | Accessories: | It Has Cap Mould Protection System, When The Cap Is Wrong, The Machine Will Stop To Protect Mould |
| High Light: | decoiler and straightener,uncoiler and straightener |
||
Cap making line includes following parts:
this whole complete line includes mechanical press/punching machine, muti-cavity punching die, cap aluminum coil holder frame, aluminum coil brush oil, blow finished cap, pull coil material servo control system, pull coil material, waste/useless material coilling, separate aluminum cap and waster/useless ring--the caps come out, the waster rings stay in the collection box, die protection system: during punching, it can protect die, if any cap is wrong, this system will stop the machine to protect die
Application:
This cap professional line is specially designed for plastic mold, medicine bottle cap, wine bottle cap, cosmetic cap, it is used with high-speed punching machine

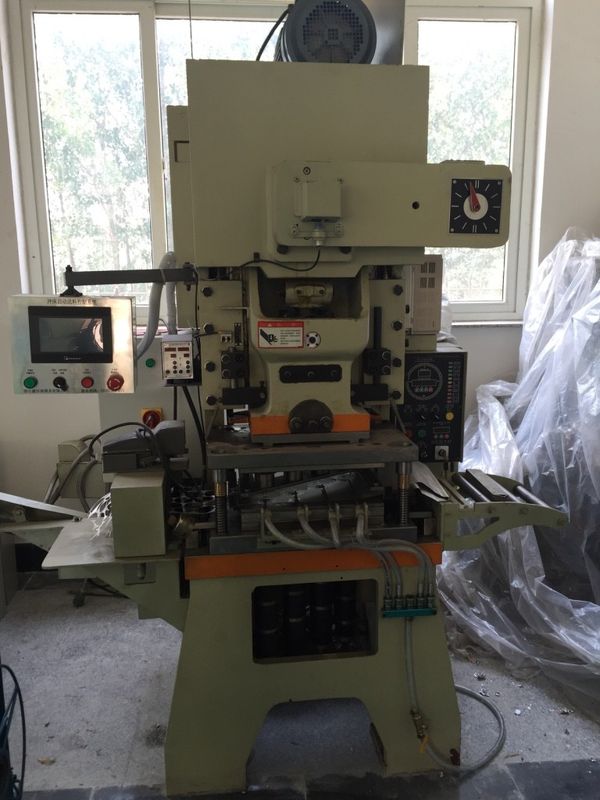

1)Punching machine/mechanical press machine details
| specification | ||||
| Capacity | ton | 60 TON 【600kN】 | Special specification | |
| model | V | H | ||
| Rated tonnage point | mm | 4 | 2 | |
| Stroke | mm | 120 | 60 | |
| Max. Die height | mm | 310 | 340 | |
|
Stroke Per Minute
|
s.p.m | 35-90 | 80-120 | |
| Slide adjustment | mm |
75
|
||
| Area Of Slide | LR×FB | 500 ×360 X70 | ||
| Area Of Bolster | LR×FB | 900 ×500 X80 | ||
| Main Motor | KW×P | 5.5 ×4 | ||
| Max. upper die weight | kg | 340 | ||
| Accuracy | JB/T 6580-93【JIS 1】 | |||
|
Color
|
Standard | |||
| Standard accessories | Optional accessories | ||||||
| Human Machine Interface(Preset Counter,Forejudge Counter,Angle Indicator,Speed Indicator) | 1 set | ○ |
Jet air electromagnetic valve |
1 set | |||
| Inverter(include Motor positive inversion) | 1 set | ○ | Die Cushion Device | 1 set | |||
| ○ | Slide knock-out device | 1 set | |||||
| Electric Cam | 1 set | ○ | Photo-electronic safety device | 1 set | |||
| Hydraulic over-load protector | 1 set | ○ | Foot switch | 1 set | |||
| Manual slide adjusting device | 1 set | ○ | Power supply | 1 set | |||
| Manual butter lubricant system | 1 set | ○ | Anti-Vibration press mount | 1 set | |||
| Counter balance device | 1 set | ○ | Quick die change device | 1 set | |||
| Crank angle indicator | 1 set | ○ | T’s operation desk | 1 set | |||
| Die height indicator (0.1mm) | 1 set | ○ | Die room light | 1 set | |||
| Misfeed Detection Consent | 1 set | ○ | Straightener | 1 set | |||
| Against over-run safety device | 1 set | ○ | Feeder | 1 set | |||
| PLC | 1 set | ○ | Uncoiler | 1 set | |||
| Air source receptacle(1/2”) | 1 set | ○ | Electrical Automatic Lubrication System | 1 set | |||
| Air Source tie-in (1/2”) | 1 set | ||||||
| Maintenance Tool box | 1 set | ||||||
| Operation Manual and precision checking list | 1 set | ||||||
2) other accessories for the cap making

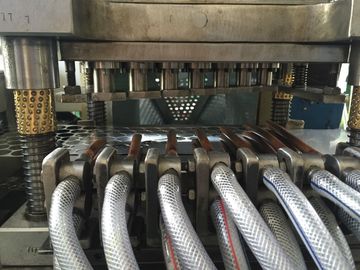

cap punching die with 5 cavity---it means one stroke, we can get 5 caps, max we can produce 16 caps
2-Cap aluminum coil holder frame
Aluminum coil brush oil
-Blow cap

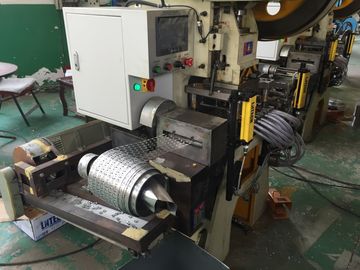

pull coil material servo control system
Pull coil material and waste material coiling

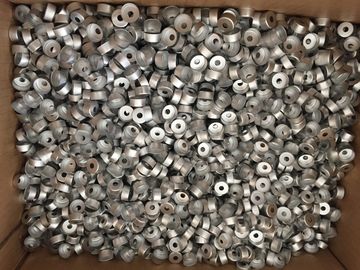

separate aluminum cap and waste ring,The caps come out, the waste rings stay in this cabilet
Die protection system: during punching, it can protect die, if any cap is wrong, this system will stop the machine to protect die
