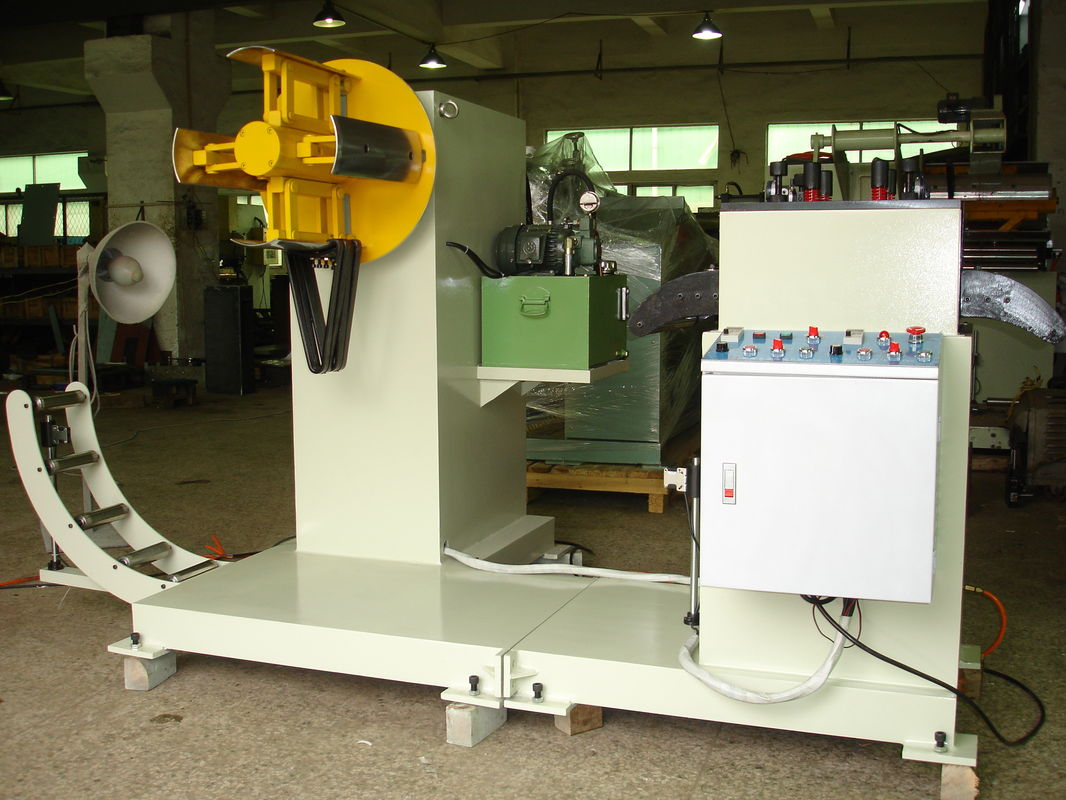

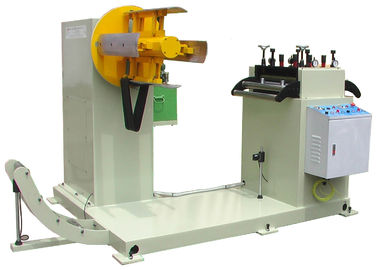

Stainless Steel Aluminum Cap 0.3 - 2mm Decoiler Straightener Feeder JM3K-L Serial

Stainless Steel Aluminum Cap 0.3 - 2mm Decoiler Straightener Feeder JM3K-L Serial
Stainless Steel Aluminum Cap 0.3 - 2mm Decoiler Straightener Feeder JM3K-L Serial Stainless Steel Aluminum Cap 0.3 - 2mm Decoiler Straightener Feeder JM3K-L Serial Stainless Steel Aluminum Cap 0.3 - 2mm Decoiler Straightener Feeder JM3K-L Serial

Large Image :  Stainless Steel Aluminum Cap 0.3 - 2mm Decoiler Straightener Feeder JM3K-L Serial

Product Details:
Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: JINQIU
Certification: ISO, CQC,SGS
Model Number: JM3K-L
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD or RMB
Packaging Details: properly rust-proof treatment, plywood case
Detailed Product Description
Metal Sheet Coil: Suitable Thickness 0.3-2.0mm Coil Width: 300/400/500/600mm
Function: Uncoiling & Leveling For Mild Steel Coil, Stainless Steel Coil, Aluminum Coil...
High Light:

coil feeder machine

,

decoiler straightener feeder

stainless steel, aluminum cap 0.3-2mm decoiler and leveling/ uncoiling and straightening ​


Model:
JM3K-L serial

Usage range:
Suitable for 0.3-2mm thickness sheet thickness coil--uncoiling and straightening for hardware and electric components


Advantages:

1, the machine adopts material enters from bottom way to straighten, design for 0.3-2.0mm thickness metal coil uncoiling and leveling, put uncoilling and leveling machine frame in one structure, reduce high precision material transition part in straightening process, to maximize the performance of the machine.

2, uncoilling rack and leveling head use electric box to control separately , and they use their own inverter, so throughout movement smoothly, protect the machine more effectively, make it in the process of movement will not be affected by various external force distortion.
3, uncoilling frequency control: photoelectric discharge, so as not to touch the material to produce sparks, avoid material surface damage.
4, leveling up and down synchronization drive, to avoid surface scratches and bruising.
5, leveling material discharging uses photoelectric control, to ensure sufficient material to be matched with the feeding area, to achieve automated production.
6,The lubrication system is added to increase the machine service life, we can also add uncoilling frame loading capacity according to customer requirement, leveling parameters also can be modified and customized, and supply the necessary power or no power pressing arm, hydraulic expansion etc..


2 in 1 Machine Models:



Model JM3K-300L JM3K-400L JM3K-500L JM3K-600L
Coil width [mm] 300 400 500 600
Coil thickness[mm] 0.3 ~ 2.0
Coil inner diameter[mm] ¢450 ~ 530
Coil outer diameter[mm] ¢1200
Straightening roller[mm] ¢32×15 pcs (up 7/ bottom 8)
Adjustment mode Four points indepent
Material out speed [m/min] 0 ~ 16
Motor [hp] 1 2 2 2
Power source 380/220V
Sensor mode photoelectric sensor
Speed adjustment mode Inverter adjusting
Loading capacity [kg] 2000 2000 3000 3000
Machine weight [kg] 1400 1500 1600 1700
Machine size [mm] 2800*1800*1700 2800*1900*1700 2800*2000*1700 2800*2100*1700
