Kitchen Hardware Coil Feeding Line High Precision Thin Plate Uncoiler And Straightener

Kitchen Hardware Coil Feeding Line High Precision Thin Plate Uncoiler And Straightener
Kitchen Hardware Coil Feeding Line High Precision Thin Plate Uncoiler And Straightener Kitchen Hardware Coil Feeding Line High Precision Thin Plate Uncoiler And Straightener Kitchen Hardware Coil Feeding Line High Precision Thin Plate Uncoiler And Straightener

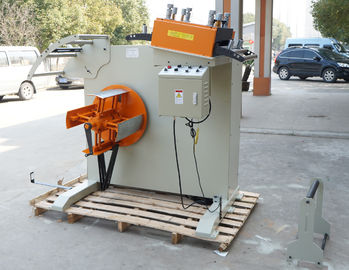

Large Image :  Kitchen Hardware Coil Feeding Line High Precision Thin Plate Uncoiler And Straightener

Product Details:
Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: JINQIU
Certification: ISO, CQC,SGS
Model Number: GJK
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: USD or RMB
Packaging Details: properly rust-proof treatment, plywood case
Detailed Product Description
Metal Sheet Coil: Suitable Thickness 0.3-1.5mm Coil Width: 200mm/300/400/500/600
Function: Automatic Feeding To Produce Kitchen Hardware
High Light:

coil feeder machine

,

roll feeder machine

2 in 1 0.3-1.5 mm coil feeding line: high precision thin plate decoiller and straightening

Model:
GJK series

Usage range:
Suitable for 0.3-1.5mm thickness sheet thickness coil uncoiler, straightener & feeder for kitchen hardware

suitable material is stainless steel, copper, aluminum....

Advantages:

1, the uncoiler and precision plate leveling machine optimization together, suitable for 0.3 ~ 1.5mm the plate for stainless steel plate, copper plate, aluminum plate and  higher precision products leveling.
2, the upper roller board can lift type 45 degrees, easy for roller cleaning and maintenance, completely avoid the scratch of sheet materials.
3, leveling roller adopts independent transmission,up 9/ bottom 9 structure, with up leveling roller with auxiliary roller, it can adjuste the material bending direction according to requirement, the entire drive correction design, in order to improve the flatness of the plate surface, suitable for high precision machining requirements.
4, the drum is adjusted by the original score type adjustment mode instead of the traditional dial type regulating mode, without additional correction, debugging is more simple and accurate, longer service life.
5, leveling rollers uses bearing steel (SUJ2), after heat treatment, HRC60 degrees surface plating hard chromium, and then grinding, high hardness, high wear resistance, long life.
6, the machine adopts dual inverter control, can reduce scratch caused by initiating material , reduce the damage rate.
7, for long size materials, shear line can also be used.

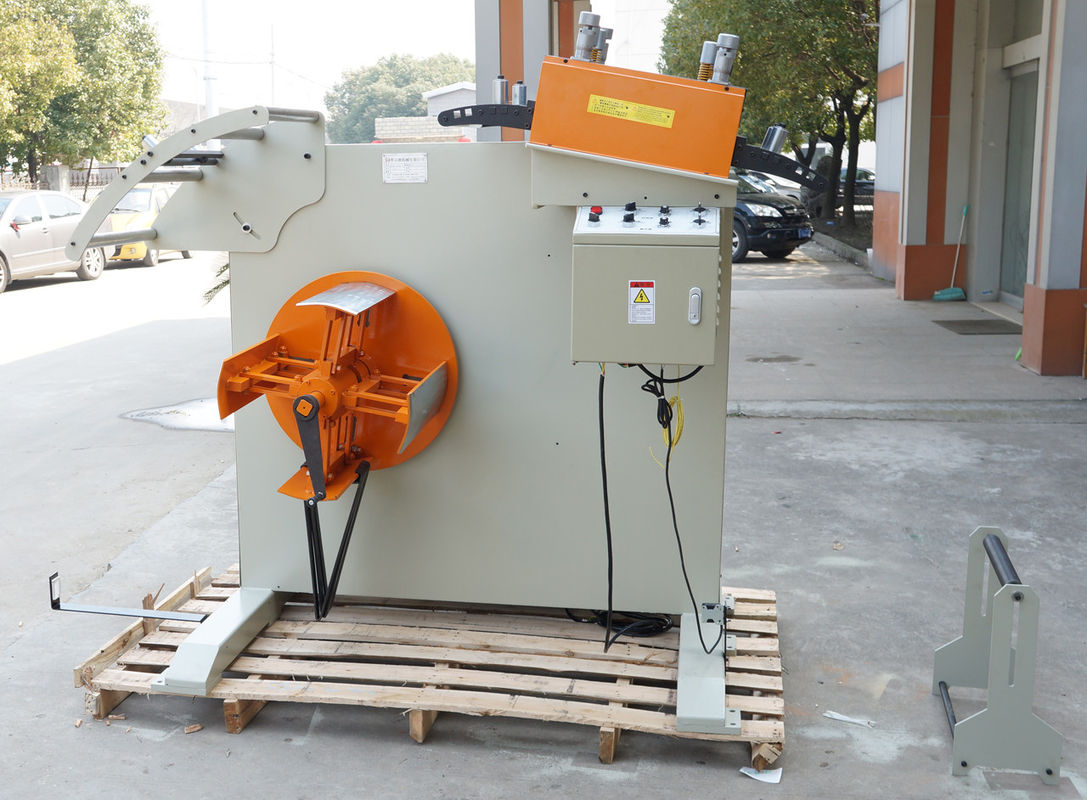

 Kitchen Hardware Coil Feeding Line High Precision Thin Plate Uncoiler And Straightener 0

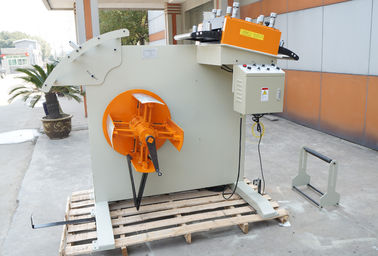

Kitchen Hardware Coil Feeding Line High Precision Thin Plate Uncoiler And Straightener 1

2 in 1 Machine Models:



Model GJK-200 GJK-300 GJK-400 GJK-500 GJK-600
Coil width[mm] 200 300 400 500 600
Coil thickness[mm]

0.3 ~ 1.5

0.1-1.3

0.1-1.2

Coil wight[kg] 500 800 1200 1500 2000
Coil inner diameter[mm] ¢450 ~ 530
Coil outer diameter[mm] ¢1000 ¢1200 ¢1200 ¢1200 ¢1200
Straightening roller[mm] ¢32×18  pcs ( up 9 bottom 9)
Uncoiler motor [hp] 1 1 2 2 3
Straightening motor [hp] 1 1 2 2 3
Adjusting mode four points independent
Straightening speed[m/min] 0 ~ 16
Coil expansion mode Manual type / hydraulic type
Sensor mode Sensor frame/ photoelectric type
voltages AC 380V
