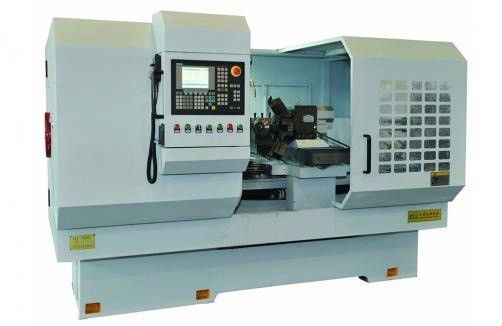

Spin Kitchen Wares Metal CNC Spinning Lathe Machine With 525 mm Bed Width

Spin Kitchen Wares Metal CNC Spinning Lathe Machine With 525 mm Bed Width
Spin Kitchen Wares Metal CNC Spinning Lathe Machine With 525 mm Bed Width Spin Kitchen Wares Metal CNC Spinning Lathe Machine With 525 mm Bed Width Spin Kitchen Wares Metal CNC Spinning Lathe Machine With 525 mm Bed Width Spin Kitchen Wares Metal CNC Spinning Lathe Machine With 525 mm Bed Width Spin Kitchen Wares Metal CNC Spinning Lathe Machine With 525 mm Bed Width

Large Image :  Spin Kitchen Wares Metal CNC Spinning Lathe Machine With 525 mm Bed Width

Product Details:
Place of Origin: WUXI
Brand Name: jinqiu
Certification: CE and CQC
Model Number: SP800
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD or RMB
Packaging Details: steel pallet and wood case
Delivery Time: 60 DAYS
Detailed Product Description
Max Work Piece Diameter: 800 Mm Work Piece Material: SS, Aluminum, Copper, Carbon Steel.....

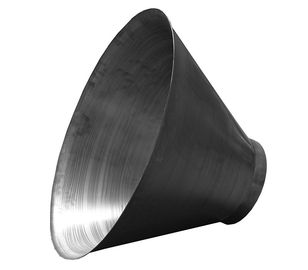

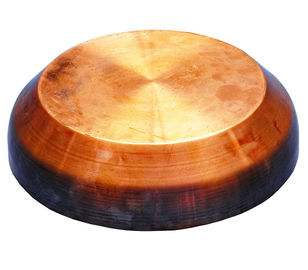

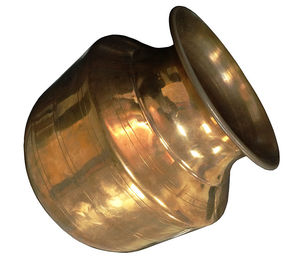

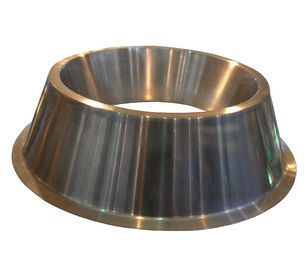

Spin Shape: Many Complicated Shape For Lamp Cover, Pot, Hardwares....
High Light:

metal spinning lathe machine

,

cnc spinning lathe

Turn kitchenwares, lamp, auto fittings, ventilations and art warer

CNC spinning and turning machine



Item  Technical value
Model SP800
Quantity of Rollers Sync 2+
Job Max. Diameter  Φ800 mm
Job Max. Turning Diameter Φ500 mm
Max. Length of Work Piece 600 mm
Blank thick  0.5-6.0 mm (luminum, Copper) 0.5-3.0 mm (Carbon Steel) 0.5-2.5 mm (Stainless Steel)
X-axis Stroke 230 mm
Z-axis Stroke 750 mm
X-axis Force 40 kN
Z-axis Force 40 kN
Tailstock pressure  30 kN
Guide Rail Type Linear Guide Rail
Width of Bed 525 mm
Rapid Traverse X/Z-axis 10/15 m/min
Servo Torque X/Z-axis 15/10 N.m
Pulse Equivalent X/Z-axis 0.001 mm
Positioning Accuracy 0.015 mm
Repetitive Positioning Accuracy 0.008 mm
Spindle Nose D8
Spindle Taper 90(1:20) Metric
Spindle Bore Φ82 mm
Spindle Speed 2500 rpm
Taper of Tailstock Quill MT5
Tailstock Stroke 450 mm
Stroke of Tailstock Quill 150 mm
Diameter of Tailstock Quill Φ82 mm
Amount of Tools / Shank Size 4+1/30x30 mm²
Spindle Motor Power 15 kw
Hydraulic Power 3 kw
Machining Accuracy It 6
Surface Roughness Ra 1.25
Service Voltage 380V AC
Power Capacity 25 KVA
Overall Dimensions 3.2x2.0x2.0 m³
Net Weight 5000 kg





SP series CNC Spinning and Turning Machine (Double Roller) is especially developed to spin kitchenwares, lamps, auto fittings, ventilations and art wares. It has many patents issued by the State Intellectual Property Office. This machine is practical, professional and strong. It has high production efficiency and can complete horn, bucket, cone type, parabolic products. It can also process threading, trimming, flanging and rolling at the same machine tool. The machine can spin many materials such as carbon steel, stainless steel, aluminum and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate. The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, mechanic and other manufacturing industries.



Our machine has following features:



* Siemens 808D CNC controller which equiped with USB port.

* Meehanite cast iron after aging treatment, with high quality and less deformation.

* Independent spindle device to ensure high process precision, stiffness and stability.

* Precision ball screw ensures dynamic performance well and positioning accurately.

* X-axis adopts integral two-way ball screw, 2 rollers move in synchronization.

* Feeding axles are driven by servo motors.

* Servo motor controle Spindle

* Hydraulic tailstock. Mobile and clamp by hydraulic system.

* Integrated automatic lubrication system makes the maintenance more reliable.

* Configuration cooling pump.

* Movable manual pulse generator makes easy to operate.

* Semi-enclosed shield.
