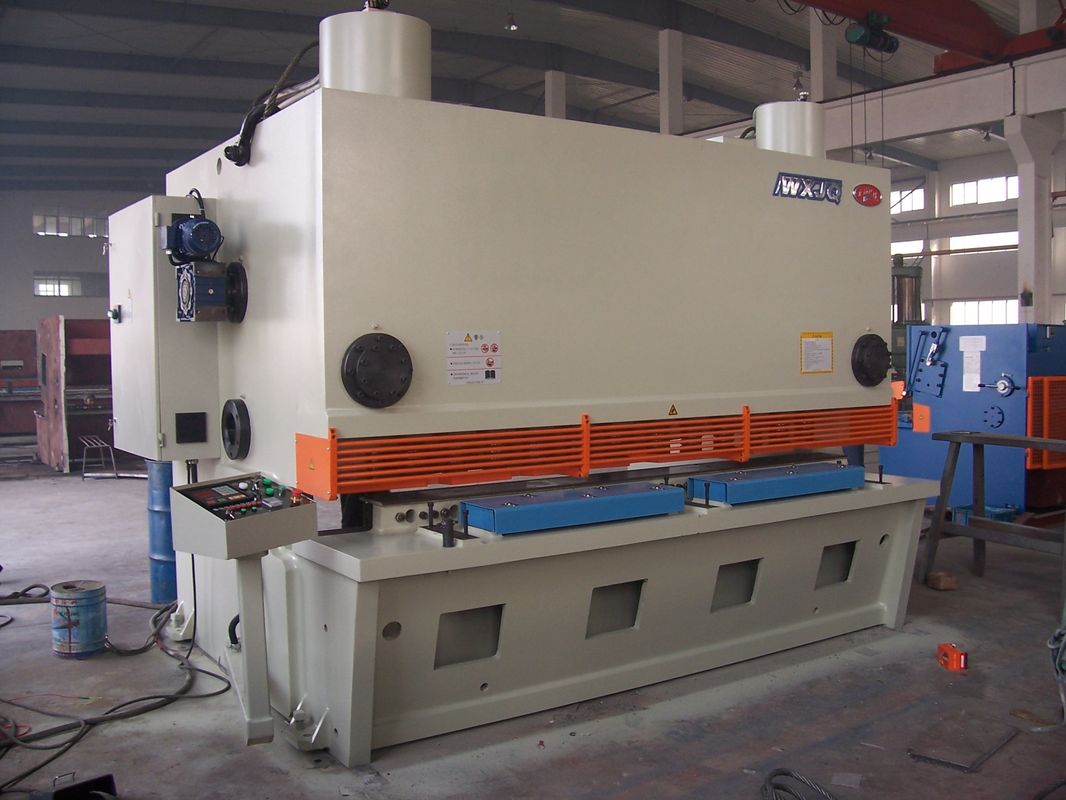

Estun System E21 CNC Guillotine Hydraulic Shearing Machines 10 Mm Thickness

Estun System E21 CNC Guillotine Hydraulic Shearing Machines 10 Mm Thickness

Technical Parameters:

Mode: QC11K-10X6000

Shearing Size: thickness 10mm, length 6000mm

Shearing Angle: 0.5-2 degree

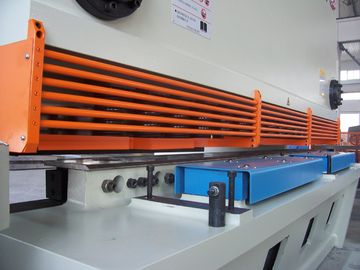

Plate Clamps: 26 pieces

Strokes: 7 times per min

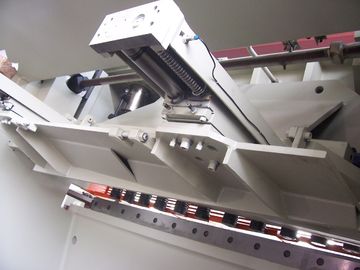

Back gauge range: 20-1000 mm

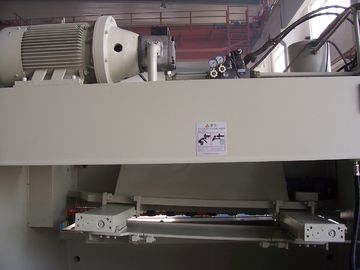

Main Motor: 22 Kw

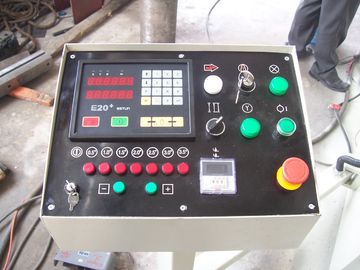

NC control system: China Estun E21S, with follwing founction:

1) control back gauge position

2) cutting gap control

3) cutting time control

4) parameter backup and restore

Volume of oil tank: 1014L

Weight: 26000 kgs

Overall Dimensions: Length 6860 mm

Width 2435 mm

Height 2985 mm

Mode: QC11K-10X7000

Shearing Size: thickness 10mm, length 7000mm

Shearing Angle: 0.5-2 degree

Plate Clamps: 35 pieces

Strokes: 7 times per min

Back gauge range: 20-800 mm

Main Motor: 37 Kw

NC control system: China Estun E21S, with follwing founction:

1) control back gauge position

2) cutting gap control

3) cutting time control

4) parameter backup and restore

Volume of oil tank: 1438L

Weight: 38645 kgs

Overall Dimensions: Length 8000 mm

Width 2500 mm

Height 3100mm

Mode: QC11K-10X8000

Shearing Size: thickness 10mm, length 8000mm

Shearing Angle: 0.5-2 degree

Plate Clamps: 40 pieces

Strokes: 7 times per min

Back gauge range: 20-1000 mm

Main Motor: 45 Kw

NC control system: China Estun E21S, with follwing founction:

1) control back gauge position

2) cutting gap control

3) cutting time control

4) parameter backup and restore

Volume of oil tank: 1784L

Weight: 49000 kgs

Overall Dimensions: Length 9310 mm

Width 2700 mm

Height 3430 mm

Product introduction:

1. Adopting rolling guild way with three-point suppoort, cutting accuracy could be maintained well

2. Rectangular blade has four edges to extend service life

3. The cutting angle could be adjusted to reduce the amount of deformation of the sheet

4. Blade gap could be adjusted accuratedly and rapidly, the top blades stroke could be adjusted stepless to improve cutting rage

5. Matching variety of back gauges and blade gaps which controled by CNC system

Quick Details:

Condition: New

Material/ Metal Processed: Carbon Steel Q235 or Q345

Extra Service: Machining

Electric componets: Schneider famous brand

Other parts: Ball screw, servo motor....

Place of Origin: Wuxi city, Jiangsu, China,

Machine Type: Hyraulic Shearing Mchine

Power: Hydraulic

Color: white, blue, yellow....

Control syste: E200S, DAC310,DAC 360, OR DTC660

Usage range: cutting metal sheet.

Packageing & Delivery

Packaging details: metal frame pallet

Delivery detail: 55-60 days

Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.

Why Choose Us?

Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

Questions:

1. Are you a trading company or factory?
--- We are factory occupying more than 62,000 m2, with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
