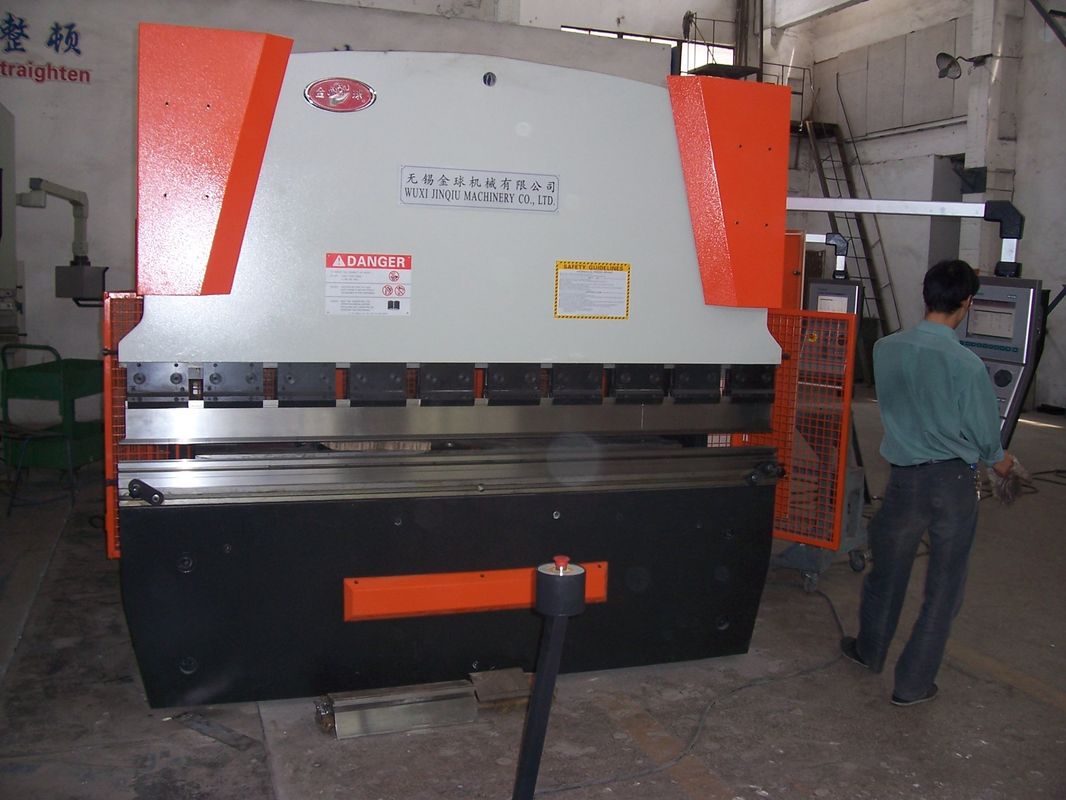

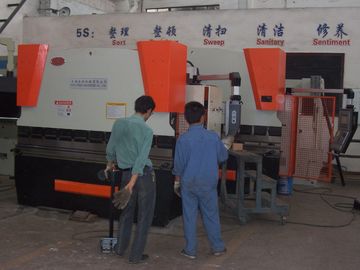

Metal Frame Cnc Sheet Metal Brake Machine 125 Ton 2500mm/3200mm/4000mm

Metal Frame Cnc Sheet Metal Brake Machine 125 Ton 2500mm/3200mm/4000mm




Machine Introduction:
1. With stylish design, high rigidity, high speed
2. Electro-hydraulic servo system, closed loop control system controls accuracy

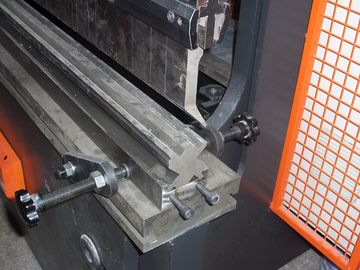

3. Worktable adopts hydraulic deflection compensation to ensure the accuracy of the workpiece
4. Back gauge is driven by servo motor, adopted ball-screw and linear guide way, it could make sure positioning accuracy.

Machine Technical Details:

Mode: WC67K-125/2500
Norminal Press: 125 ton
Length of Table: 2500mm
Distance between Housing: 2050mm
Throat Depth: 320mm
Ram Stroke: 100mm
Ram Speed: 60/8/40 mm/s
Open Height: 365 mm
Controller System: Chinese Famouse Brand: Estun E21, with ball screw, inveter, encoder to control two axis:     X&Y
Main Motor: 7.5 Kw
Volume of oil tank: 240L
Weight: 6500 kgs
Overall Dimensions: L 2800 mm
                                 W 1970 mm
                                 H 2345 mm

Mode: WC67K-125/3200
Norminal Press: 125 ton
Length of Table: 3200mm
Distance between Housing: 2650mm
Throat Depth: 320mm
Ram Stroke: 100mm
Ram Speed: 60/8/40 mm/s
Open Height: 365 mm
Controller System: Chinese Famouse Brand: Estun E21, with ball screw, inveter, encoder to control two axis: X&Y
Main Motor: 7.5 Kw
Volume of oil tank: 280L
Weight: 8000 kgs
Overall Dimensions: L 3530 mm
W 1990 mm
H 2575 mm

Press brake Machine Model: WE67K-125/3200
Technical Details:
Norminal Press: 125 ton
Length of Table: 3200mm
Distance between Housing: 2650mm
Throat Depth: 320mm
Ram Stroke: 200mm
Ram Speed: 100/8.5/75 mm/s
Open Height: 490 mm
Main Motor: 7.5 Kw
Controller System: 1. Netherland Brand: Delem DA 52 2+1 axis: Y1,Y2+ worktable crowning system
                              2. Netherland Brand: Delem DA52 3+1 axis: Y1,Y2, X + worktable crowning system
                              3. Nether land Brand: Delem DA65W 4+1 axis: Y1,Y2,X,R+ worktable crowning system
Volume of oil tank: 380L
Weight: 8900 kgs
Overall Dimensions: L 3550 mm
                                 W 1990 mm
                                 H 2610 mm

Mode: WC67K-125/4000
Norminal Press: 125 ton
Length of Table: 4000mm
Distance between Housing: 3100mm
Throat Depth: 320mm
Ram Stroke: 100mm
Ram Speed: 60/8/40 mm/s
Open Height: 365 mm
Controller System: Chinese Famouse Brand: Estun E21, with ball screw, inveter, encoder to control two axis: X&Y
Main Motor: 7.5 Kw
Volume of oil tank: 280L
Weight: 9000 kgs
Overall Dimensions: L 4300 mm
W 1990 mm
H 2575 mm

Model: WE67K-125/4000
Technical Details:
Norminal Press: 125 ton
Length of Table: 4000mm
Distance between Housing: 3100mm
Throat Depth: 430mm
Ram Stroke: 200mm
Ram Speed: 100/8.5/75 mm/s
Open Height: 490 mm
Main Motor: 7.5 Kw
Controller System: 1. Netherland Brand: Delem DA 52 2+1 axis: Y1,Y2+ worktable crowning system
2. Netherland Brand: Delem DA52 3+1 axis: Y1,Y2, X + worktable crowning system
3. Nether land Brand: Delem DA65W 4+1 axis: Y1,Y2,X,R+ worktable crowning system
Volume of oil tank: 380L
Weight: 11300 kgs
Overall Dimensions: L 4250 mm
W 2140 mm
H 2870 mm

Main Performance :
1 The frame of machine is composed of tank, worktable, left and right housings and ram. So it has high strength and good rigidity. Also it takes vibration to eliminate stress.
2 Adopting electric-hydraulic proportional valve to ensure the synchronization of both cylinders. The proportional valve is made by BOSCH company with very good performance such as small friction, fine electronic amplifier and electric magnet with high controlling force and continuous action. There are two raster displayers on both sides of machine to inspect the position of ram continuously and feed back the signal to control system, then the control system will control electric-hydraulic valve to make two cylinders synchronization on one machine. Because the raster displayers are installed to “C” plates, not on housing plates directly, the deflection of ram and frame when working will not effect its measuring and controlling precision.
3 Through computer,the operator could communicate with machine. The computer has several service language, calculate and adjust the bending force automatically. Also it could calculate and control the dead point, speed changing point.The strokes (Y1, Y2) of ram could make a small tilt to meet the special requirement of user.
4 Equipped with good guiding system, position measuring system and hydraulic balance system to meet the requirements of full length job and eccentric job.
5 Worktable compensation unit is adopted to make up for deflection of machine when working to make sure the precision of work piece.
6 The surface of cylinder has good wearing and heat treatment, so it has good lubrication and long service life.

Quick Details:
Condition: New
Material/ Metal Processed: Carbon Steel
Extra Service: Machining
Electric componets: Schneider famous brand
Other parts: Ball screw, servo motor....
Place of Origin: Wuxi city, Jiangsu, China,
Machine Type: Press Brake
Power: Hydraulic
Color: white, blue, yellow....
Control syste: E21, DA41, DA52, DA66T....
Usage range: Bending metal sheet.

Packageing & Delivery
Packaging details: metal frame
Delivery detail: 45-60 days
