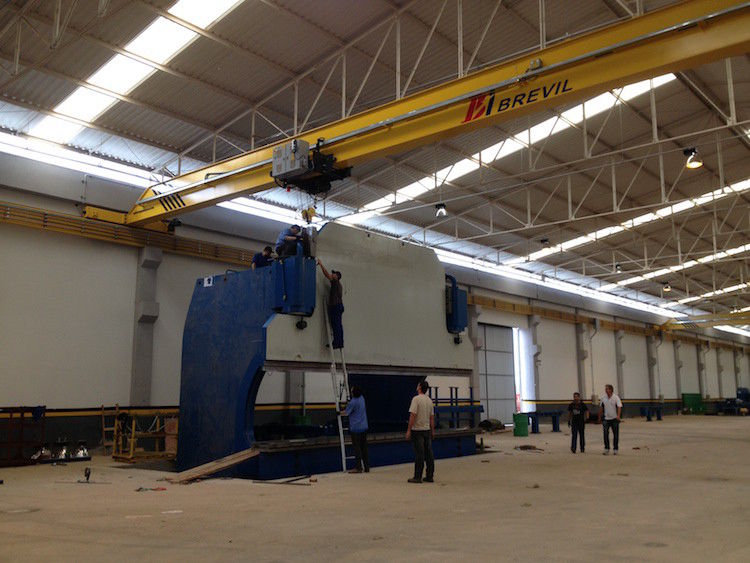

Heavy Duty 1600 Ton 6 M Hydraulic Press Brake Machine / Metal Brake Machine

Heavy Duty 1600 Ton 6 M Hydraulic Press Brake Machine / Metal Brake Machine

This model is very suitable to bend light pole

Quick Details:

Condition: New

Material/ Metal Processed: Carbon Steel

Extra Service: Machining

Electric componets: Schneider famous brand

Other parts: Ball screw, servo motor....

Place of Origin: Wuxi city, Jiangsu, China,

Machine Type: Press Brake

Power: Hydraulic

Color: white, blue, yellow....

Control syste: E21, DA41, DA52, DA66T....

Usage range: Bending metal sheet.

Technical Parameters:

Mode: WC67Y-1600/6000

Norminal Press: 1600 ton

Length of Table: 6000mm

Distance between Housing: 4800mm

Throat Depth: 1100mm

Ram Stroke: 450mm

Ram Speed: 70/6.5/55mm/s

Open Height: 1200 mm

Main Motor: 2x55 Kw

Volume of oil tank: 3900L

Weight: 155000 kgs

Overall Dimensions: Length 6240 mm

Width 8133 mm

Height 7050 mm

Packageing & Delivery

Packaging details: metal frame

Delivery detail: 55-60 days

 Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.

Why Choose Us?

Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

Questions:

1. Are you a trading company or factory?
  --- We are factory occupying more than 62,000 m2,  with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
  --- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
  --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
  --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

5. Can I go to visit your factory?
  --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
  --- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
