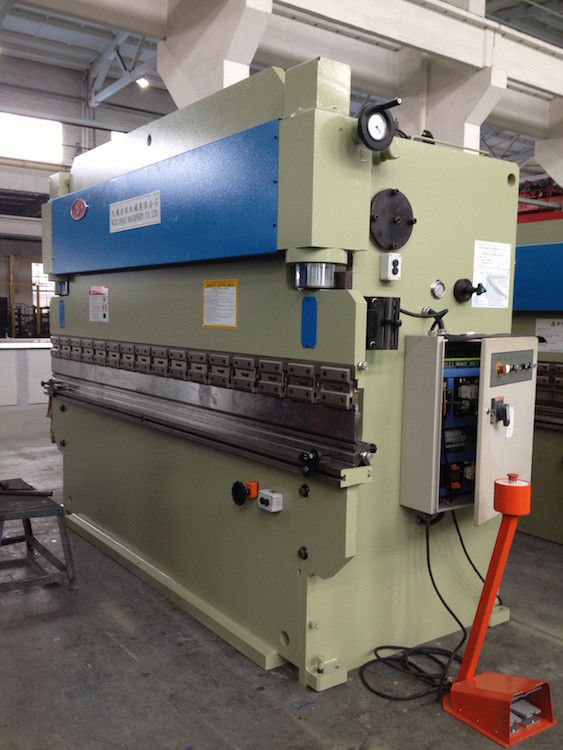

Hydraulic Press Brake Machine / Plate Bending Machine 63 Ton WC67Y-63/2500

Hydraulic Press Brake Machine / Plate Bending Machine 63 Ton WC67Y-63/2500

Technical Parameters:

Mode: WC67Y-63/2500

Norminal Press: 63 ton

Length of Table: 2500mm

Distance between Housing: 2050mm

Throat Depth: 250mm

Ram Stroke: 100mm

Ram Speed: 70/10/60 mm/s

Open Height: 340 mm

Main Motor: 5.5 Kw

Volume of oil tank: 240L

Weight: 4500 kgs

Overall Dimensions: L 2750 mm

                                 W 1725 mm

                                 H 2215 mm

Quick Details:

Condition: New

Material/ Metal Processed: Carbon Steel

Extra Service: Machining

Electric componets: Schneider famous brand

Other parts: Ball screw, servo motor....

Place of Origin: Wuxi city, Jiangsu, China,

Machine Type: Press Brake

Power: Hydraulic

Color: white, blue, yellow....

Control syste: E21, DA41, DA52, DA66T....

Usage range: Bending metal sheet.

Packageing & Delivery

Packaging details: metal frame

Delivery detail: 45-60 days

 Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.

Feature and Advantages:

1. Integrated hydraulic control system is more reliable and easy for maintenance.
2. The slide synchro system adopts steel torsion bar synchro system with very simple structure but very high accuracy. 2 ends of slide has 2 sychnro fork which make the slides movement is always parallel to the working table. And this will make the movement effect balanced during operation. The system uses upper die compensation to improve the brake precision.
3. The machine is a kind of steel torsion bar sychnro brake, which is the third generation of brake. Electronic control of back gauge and ram stroke, data displayed and precision control by man. Hydraulic power cell construction is convenient to install, which limit the oil route and connector quantity to minimize integrated hydraulic valve block. Block route and wide range of speed control, work steadily.

4. Main components: Schneider electrical components NOK sealing components
5. Optional accessories: Esturn E10 counter,pendant-control-box German Herbiger valves or Italy Aron valves Light curtain Ball screw and linear guide of backgauge Tooling clamping device
