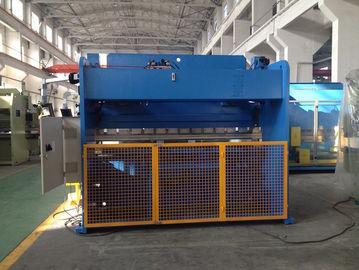

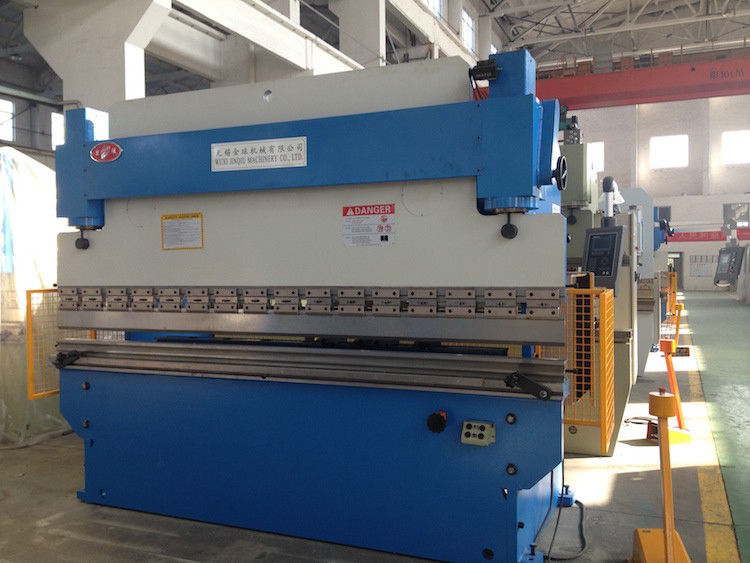

40 Ton - 2000mm Hydraulic Sheet Bending Machine For Metal Sheet

40 Ton - 2000mm Hydraulic Sheet Bending Machine For Metal Sheet
40 Ton - 2000mm Hydraulic Sheet Bending Machine For Metal Sheet 40 Ton - 2000mm Hydraulic Sheet Bending Machine For Metal Sheet 40 Ton - 2000mm Hydraulic Sheet Bending Machine For Metal Sheet 40 Ton - 2000mm Hydraulic Sheet Bending Machine For Metal Sheet

Large Image :  40 Ton - 2000mm Hydraulic Sheet Bending Machine For Metal Sheet

Product Details:
Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: WC67Y-40/2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Detailed Product Description
Pressure: 40 Ton Working Length: 2000
High Light:

metal brake machine

,

sheet metal press brake

,

40 ton metal steel bending machine

40 Ton - 2000mm Hydraulic Sheet Bending Machine For Metal Sheet





Technical Parameters:

Mode: WC67Y-40/2000

Norminal Press: 40 ton

Length of Table: 2000mm

Distance between Housing: 1650mm

Throat Depth: 200mm

Ram Stroke: 100mm

Ram Speed: 65/8/70 mm/s

Open Height: 340 mm

Main Motor: 4 Kw

Volume of oil tank: 145L

Weight: 2800 kgs

Overall Dimensions: L 2350 mm

                                 W 1469 mm

                                 H 2145 mm



Production Characters:

1. The steel-welded frame could make sure high strength, hight rigidity and high accuracy

2. Using of mechanical forced synchro system, both sides of sliders move in parallel by synchro axis.

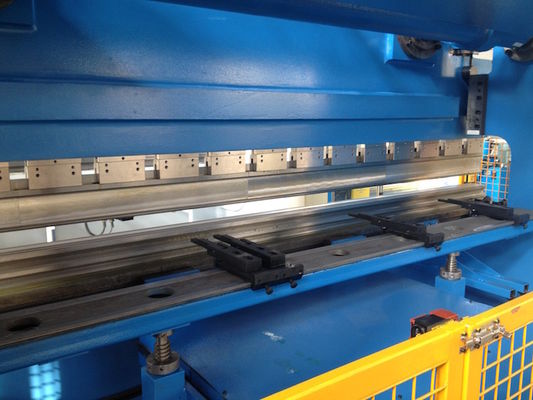

3. Deflection compensation unit is installed in the upper mould, upper mould clamping device is an option.

4. When NC press Brake, X-axis backgauge is driven by servo motor, adoapted ball-screw and linear guide way

5. When NC press brake, ram stroke are controlled by servo motor, it could make sure higher positioning accuracy



Optional for customer:

1. Color: customer can choose to match their existed machines

2. Bending die toolings: the machine has included standard toolings, but we can also specially design according to customers workjobs.

3. Electrical components: we use Schneider brand

4. Bending Thickness: please calculate according to 650x thicknessx thicknessx length/ 8 x thickness, so 30 ton can bend max 1.2 mm with 2000mm length. If shorter, it can bend more thickness.

5. Bending width range: max 2000mm

6. Certificate: CE, CQC, and ISO

7. Bending material: mild steel, stainless steel, aluminum steel
