16mm Thckness 6000mm Hydraulic Cnc Shearing Machine For Metal Plate , Low Noise

China 16mm Thckness 6000mm Hydraulic Cnc Shearing Machine For Metal Plate , Low Noise supplier
16mm Thckness 6000mm Hydraulic Cnc Shearing Machine For Metal Plate , Low Noise supplier 16mm Thckness 6000mm Hydraulic Cnc Shearing Machine For Metal Plate , Low Noise supplier 16mm Thckness 6000mm Hydraulic Cnc Shearing Machine For Metal Plate , Low Noise supplier

Large Image :  16mm Thckness 6000mm Hydraulic Cnc Shearing Machine For Metal Plate , Low Noise

Product Details:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Brand Name: Jinqiu
Certification: CE and CQC
Model Number: QC11K-16 X6016

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Detailed Product Description
Material: Q235 Or Q345 Mild Steel Cutting Thickness: 16 Mm
Cutting Length: 6016mm Blade Material: Cr12MoV





16mm Thckness 6000mm Hydraulic Cnc Shearing Machine For Metal Plate , Low Noise



Cutting machinery Technical Parameters:

Mode: QC11K-16X6016

Shearing Size: thickness 16mm, length 6016mm

Shearing Angle: 0.5-2.5 degree

Plate Clamps: 20 pieces

Strokes: 4.5 times per min

Back gauge range: 20-1000 mm

Main Motor: 55 Kw

NC control system: China Estun E21S, with follwing founction:

1) control back gauge position

2) cutting gap control

3) cutting time control

4) parameter backup and restore

Volume of oil tank: 1970L

Weight: 47000 kgs

Overall Dimensions: Length 7345mm

Machine Width 2820 mm

Machine Height 3355 mm







CNC hydraulic shearing machine introduction:

1. Adopting rolling guild way with three-point suppoort, cutting accuracy could be maintained well

2. Rectangular blade has four edges to extend service life

3. The cutting angle could be adjusted to reduce the amount of deformation of the sheet

4. Blade gap could be adjusted accuratedly and rapidly, the top blades stroke could be adjusted stepless to improve cutting rage

5. Matching variety of back gauges and blade gaps which controled by CNC system







Main Details:

Condition: New

Material/ Metal Processed: Carbon Steel Q235 or Q345

Extra Service: Machining

Electric componets: Schneider famous brand

Other parts: Ball screw, servo motor....

Place of Origin: Wuxi city, Jiangsu, China,

Machine Type: Hyraulic Shearing Mchine

Power: Hydraulic

Color: white, blue, yellow....

Control syste: E200S, DAC310,DAC 360, OR DTC660

Usage range: cutting metal sheet.



Packageing & Delivery

Packaging ways: metal frame pallet

Delivery time: 55-60 days





The Main Structure Character

Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.





Why Choose Us?

1)we have rich experiece and big scale factory.

         Our company was founded in 1969, we are the earliest and biggest factory for metal sheet machines in China with 47 years history. Our company covers an area of 62,000 square meters . We have 300 employees. In many countries, there are our machine, such as in Brazil, Algerial, Saudi, Latvia, Russia, India.....Many users.



2) All steel plates are made heat treatment, and before delivery, we will install the shearing machine and let the machine run several days to make sure the machine has no problem



3) We have engineer who can speak english, if the machine has any problem, our engineer can speak and guide user to solve the problem at the first time.

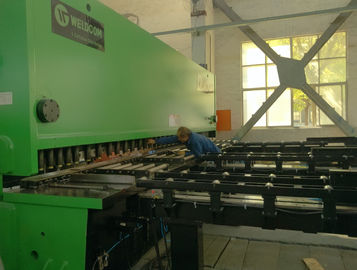

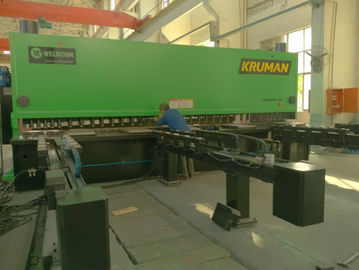

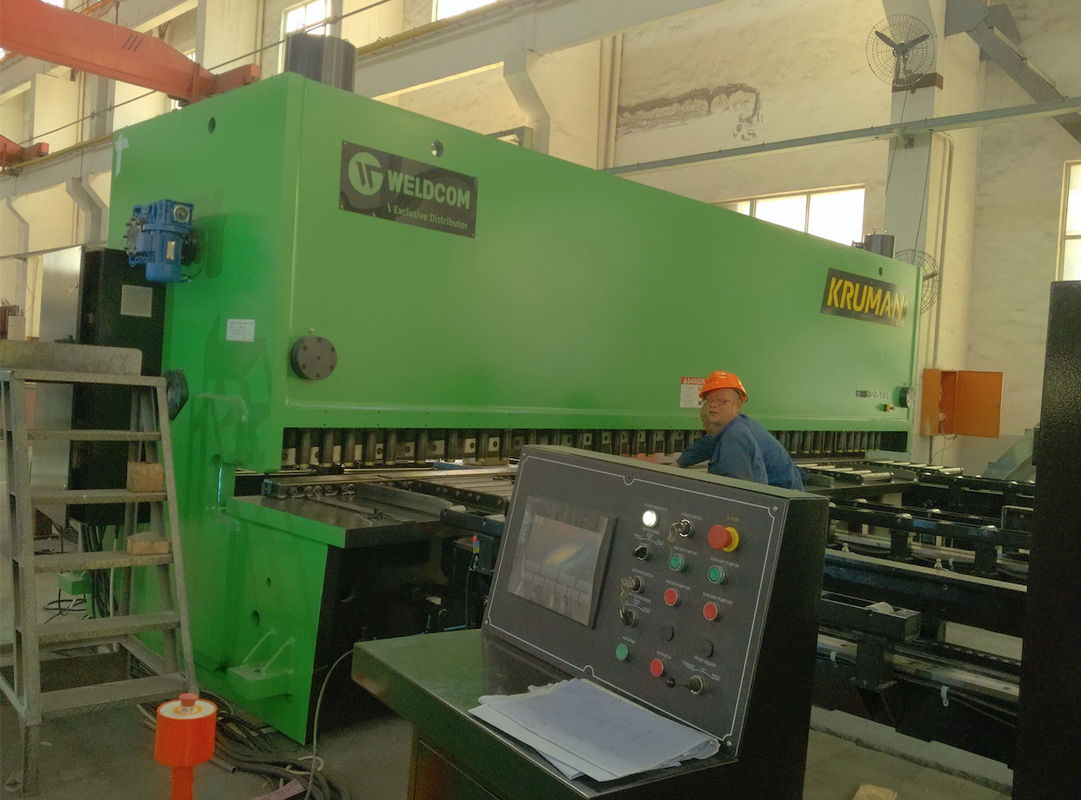

16mm Thckness 6000mm Hydraulic Cnc Shearing Machine For Metal Plate , Low Noise
